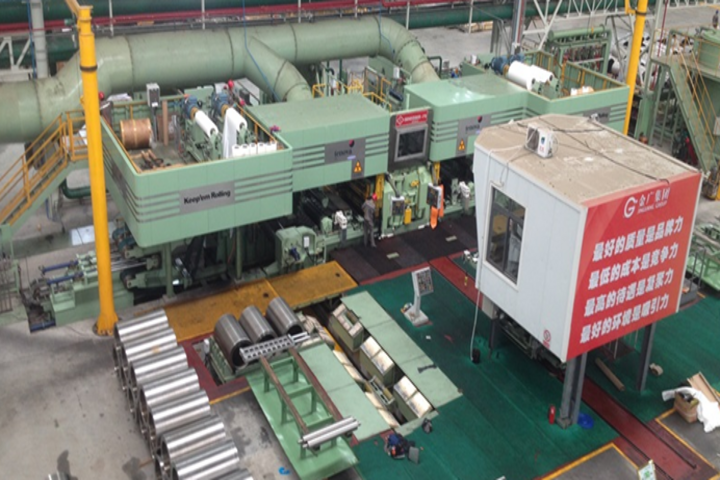

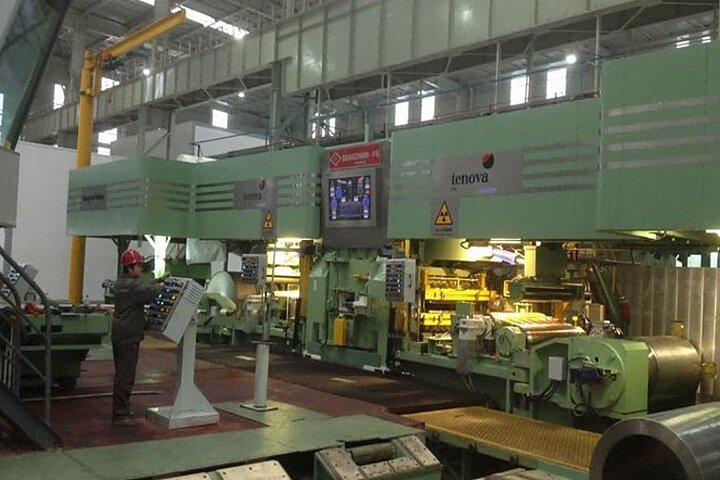

Qty. 1 Second-hand 20 HI Sendzimir Rolling Mill

Mfc.: I²S, Type: 20 HI - ZR22BE-52 – Monoblock housing, Built: 2014

Annual capacity: 100,000 – 150,000 tons/year, Material: Stainless Steel Production

Hydraulic screw down

Thickness & strip shape adjustment functions

Strip width: 800-1300 mm, Thickness: 0.2 – 6.0 mm

Coil diameter: 610 mm, Core shaft (830 mm sleeve) to 2200 mm

Max. coil weight: 25 t (including sleeves/sheeting)

Tension: 300 kN (800 m/min) to 500 kN (480 m/min),

Max. rolling speed: 800 m/min, Max. roll separating force: 9000 kN

Main mill motor power: 4000 kW, 3150 VAC, Opening/receiving reel motor: 4000 kW

Cooling system: Oil-cooled with 9000 L/min strip cooling spray & 3000 L/min bearing cooling

Filtration capacity: 15,800 l/min

The capacity of the Fume Exhausting system: 130000 m³/h

Full specification can be provided on request!
