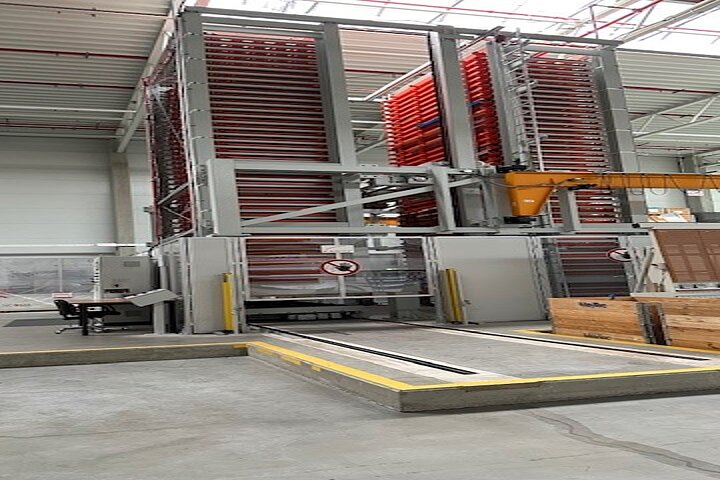

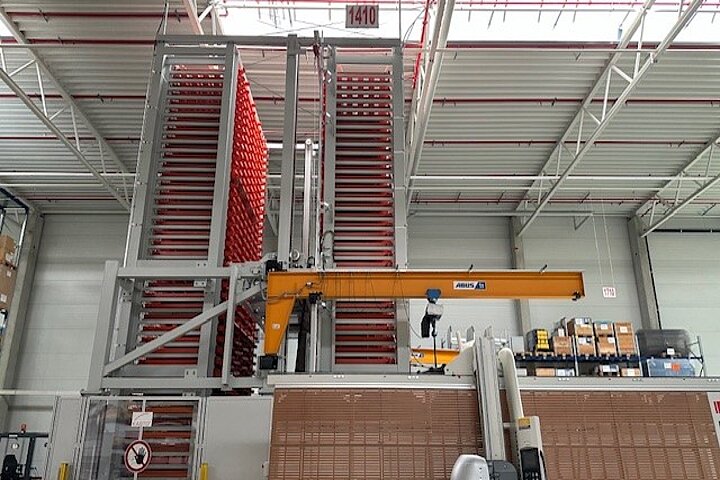

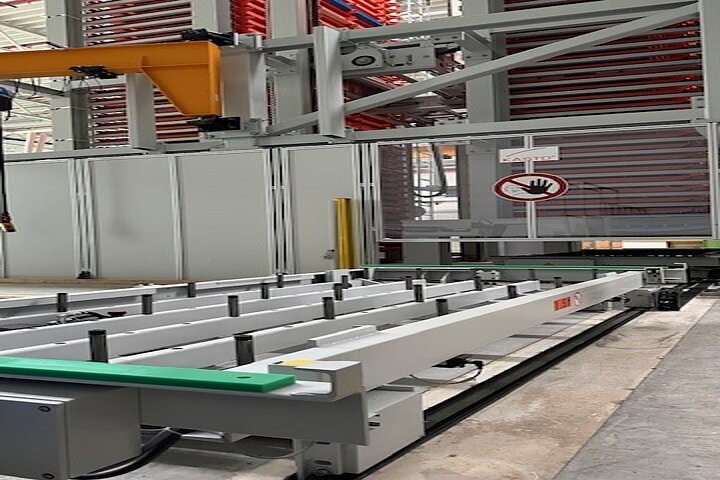

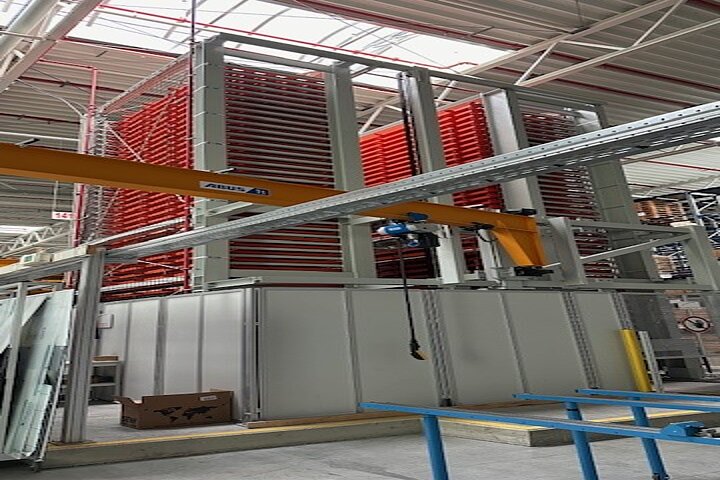

Qty. 1 Second-hand plate storage system

Mfc.: Kasto Maschinenbau GmbH, Type: UNITOWER B1.5

Built: 2018, Still in operation!

Number of storage spaces:   86

Pallets size:                Usable dimensions:    3000 x 1500 x 90 mm – L x W x H

                                   External dimensions:  3290 x 1616 x 160 (70) mm – L x W x H

Payload per pallet:     1500 kg

Use for surface elements made of wood, polycarbonate, etc.

Only about 300 movements have taken place since 2018 - one movement takes about 2 minutes.

The system is regularly serviced by the manufacturer.

Speeds           Hoist:   16.0 m/min.                Pull and push device: 20.0 m/min.

System dimensions approx.:             8855 x 5900 x 5730 mm – H x L x W
