Qty. 1 Second-hand extrusion press line

Mfc.: UBE, Guangdong Kikan, Comatco, Omafu

Built: 2014, Stopped: 2025

Extruder force: 6600 MT, 7300 UST

Billet dia.: 356 & 457 mm, 14” & 18”, Billet length: 610 – 1346 mm

Control system by Siemens PLC

Scope of supply: Single aluminum rod heating furnace + hot sawing machine

Extrusion press          Cold bed production line        Straightening machine

Fully automatic servo traction machine        Finished product sawing machine +

Aluminum shavings recycling system                       Mold heating furnace

Mold-specific lifting machine             8 individual box molds

2 box-type cover molds heating furnace       Aluminum rod stripping machine

Pneumatic oil purifier unit for extruder          Distribution cabinets of the production line

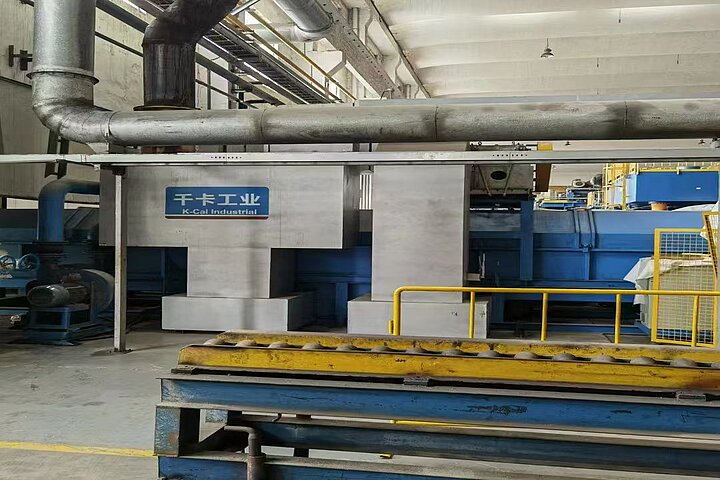

Single aluminum log gas heating furnace + hot sawing machine

Produced by Guangdong Kikan Company

Log size: 14” & 18”

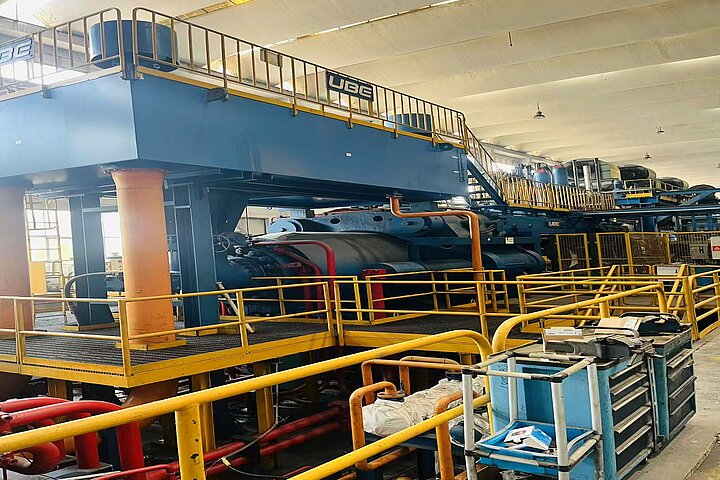

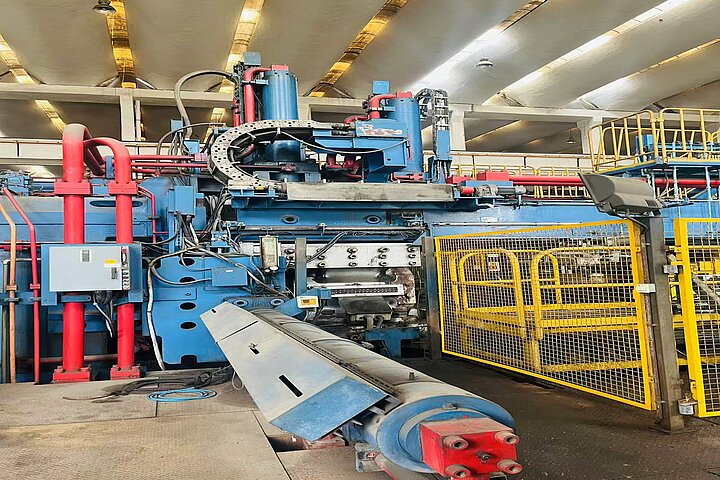

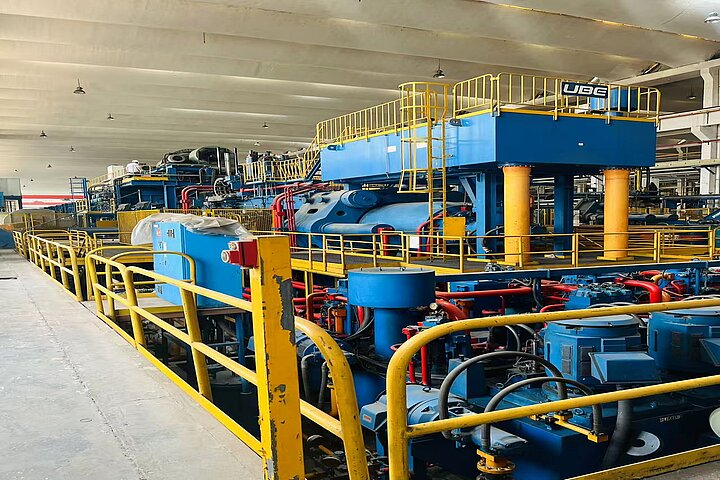

Extrusion Press: 6600 MT, 7300UST, MFC.: UBE Corporation

Pressing pressure: 250 kg/cm²

Forward speed – empty:        400 mm/sec.               Compression speed:  25.4 mm/sec.

Squeeze rod Return speed:   400 mm/sec.               Return speed:             180 mm/sec.

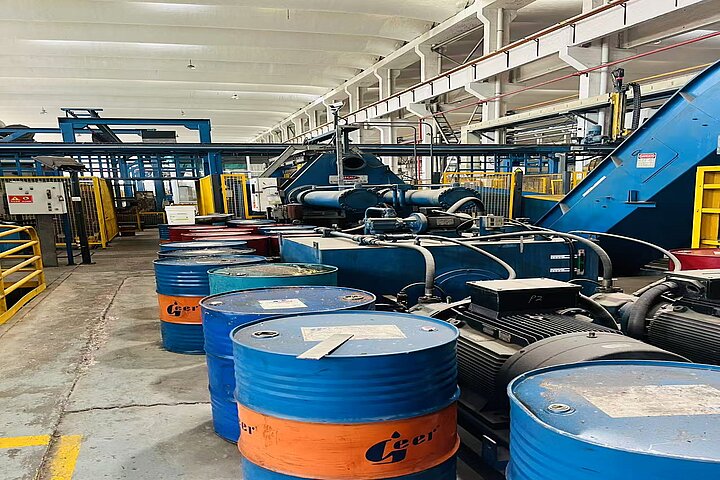

Qty. 8 Pumps             Variable displacement plunger pumps          Mfc.: Rexroth

Cooling filtration pumps         Pressure:        250 kg/cm²                 500 L/min

Squeeze filtration pressure pump     Pressure:        7 kg/cm²          280 + 196 L/min.

Auxiliary pump            Pressure:        250 kg/cm²      65 L/min

Cooling pumps           Pressure:        80 kg/cm²        271 + 89 L/min.

Servo pump                Pressure:        50 kg/cm²        152 + 89 L/min.

Qty. 8 Main pump motors      Power: 230 kW, 480 V

Servo & pressure holding motor        Power:            55 kW, 480 V

Qty. 3 Cooling motors                                    Power:            75 kW, 480 V

Qty. 2 Cooling filter motor                  Power:            11 kW, 480 V

Auxilliary pump motor                        Power:            37 kW, 480 V

Fully automatic servo puller unit                   Produced by Comatco Company

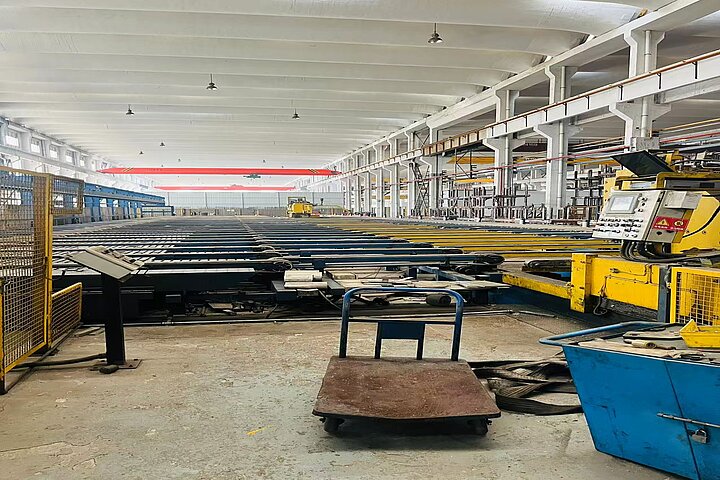

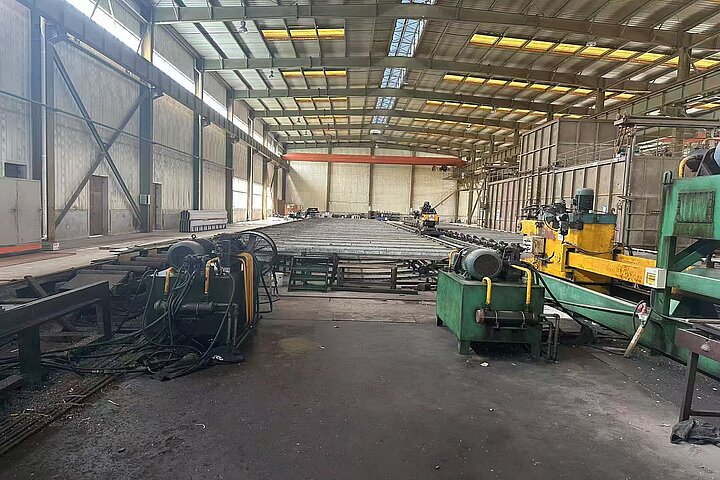

Cold bed run-out table + Straightening machine      Mfc.:    Comatco         13 x 52 m

Finished product sawing machine + aluminum chip recycling system        Mfc.: Comatco

Mold heating furnace + Mold-specific lifting machine          8 single box mold

2-box flip-top mold heating furnace               Produced by Omafu Company

Aluminum rod stripping machine                   Produced by Omafu Company

Pneumatic oil purifier unit for extruder          Produced by UBE Corporation

Distribution cabinets of the production line
