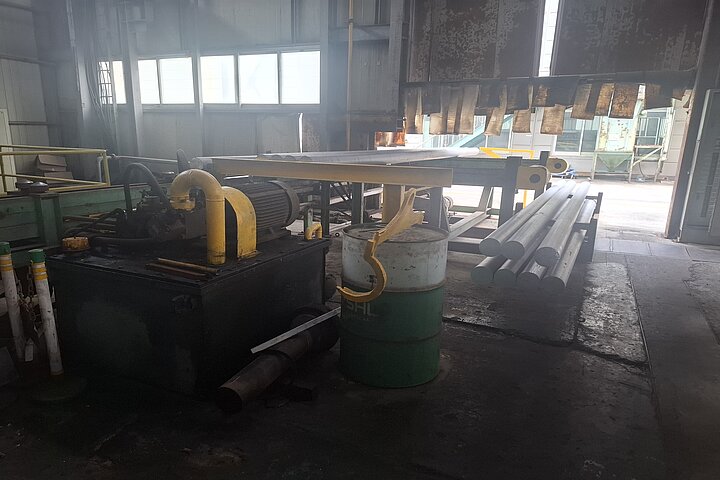

Qty. 1 Second-hand Aluminium Extrusion Press Line

Mfc.: UBE Industries Ltd., Japan                  Force:  1800 UST       Billet dia.: 7”, 178 mm

Built: 1995                                          Stopped: 2020, but still under power and can be run

Press Type: Direct Hydraulic single action extrusion press

Specification / Scope of supply:

1) Billet Handling & Heating:

Billet Loader & Billet Transfer Conveyor

Billet size: dia. 5”-7”               Log length 6,000 - 10,000 mm

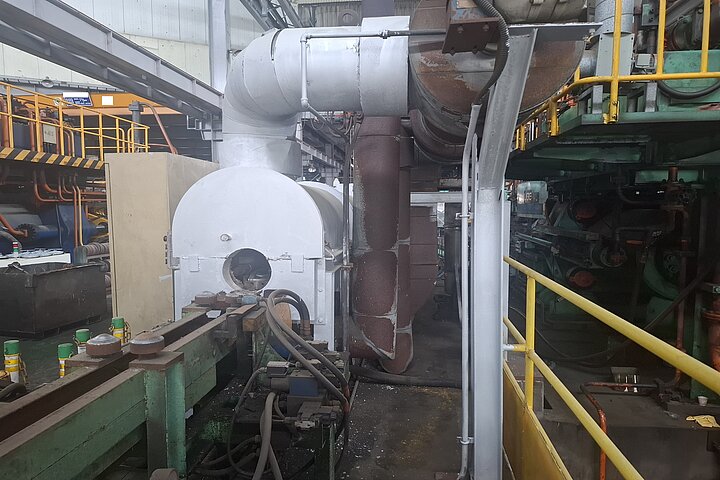

Billet Oven: manufacturer: Yeolwon Engineering Korea, LPG / Natural gas fired

2) Die Heating System: Die Oven & Die Preheating Equipment

3) Extrusion press: UBE JAPAN                               Rated Extrusion Force: 1800 UST

Main Hydraulic Cylinder, Main Ram Assembly, Container Assembly, Die Slide System, Die Changer System, Crosshead Assembly

4) Cooling & Handling Section

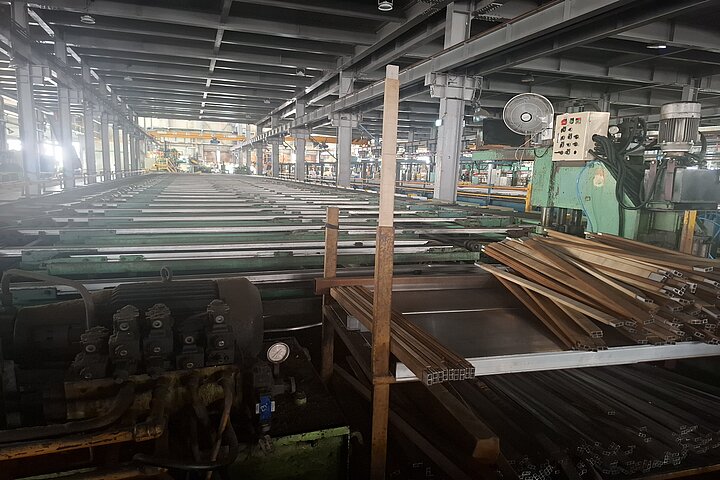

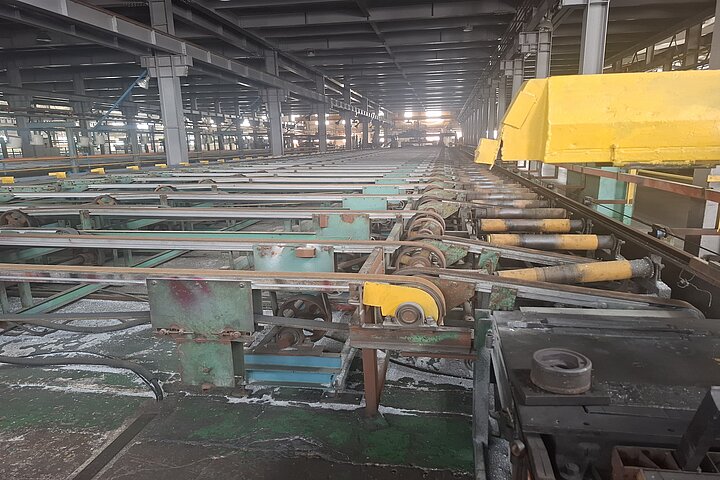

Puller System, Long Cooling Table, Runout Table, Profile Transfer System

5) Finishing Section

Cut-Off Saw, Stretcher, Automatic Stacker, Packing Station

6) Utility Systems

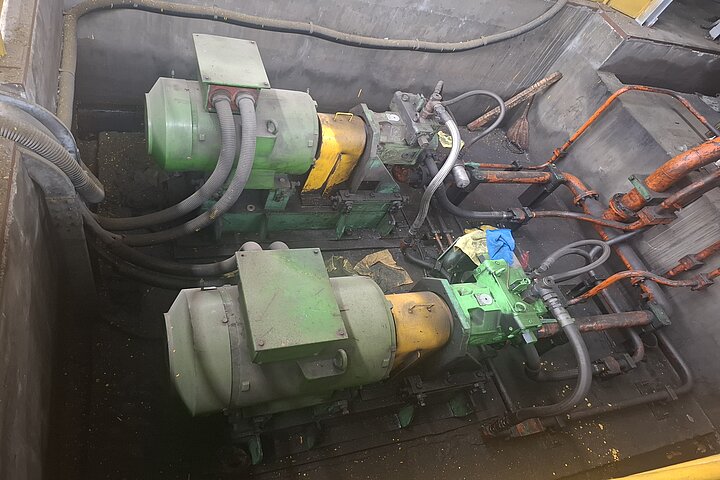

Main Hydraulic Power Unit, Hydraulic Pump Units, Electrical Control Cabinets, Main Operator Control Station, Auxiliary Control Panels, HMI Control System

7) Tooling Included

A substantial quantity of extrusion tooling is included with the line:

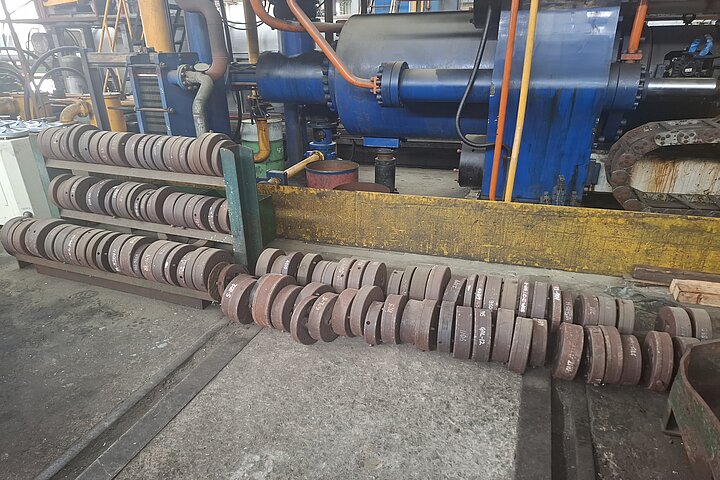

Containers, Dummy Blocks, Die Rings, Backers, Bolsters, Extrusion Tooling Accessories

Large tooling inventory available as part of the package
