Qty. 1 Second-hand Aluminium Extrusion Press Line

Mfc.:    Youngstown USA                  Force:  1650 MT         Billet dia.: 6”, 152 mm

Built: early 1980s, completely Revamped in 1999   Production start: 1999

Stopped: 2025, but still under power

Billet size: 6”, 152 x 550 mm             Press Type: Horizontal Hydraulic, Direct Extrusion

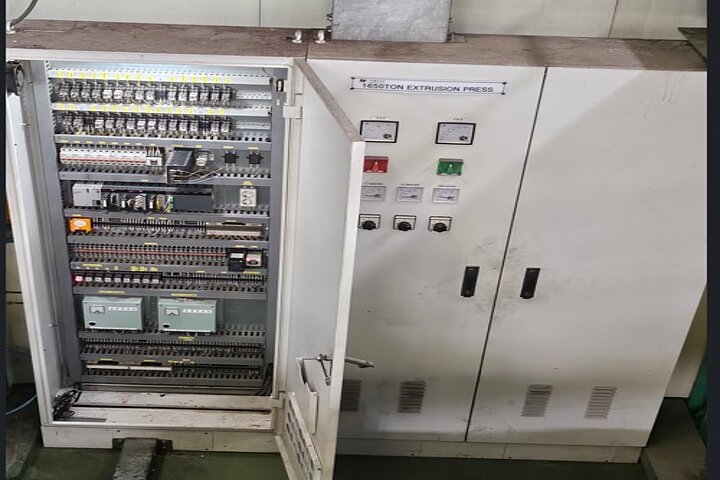

PLC:    LS XGK (Korea)                     Required floor space: 20 mtrs x 60 mtrs

Specification / Scope of supply:

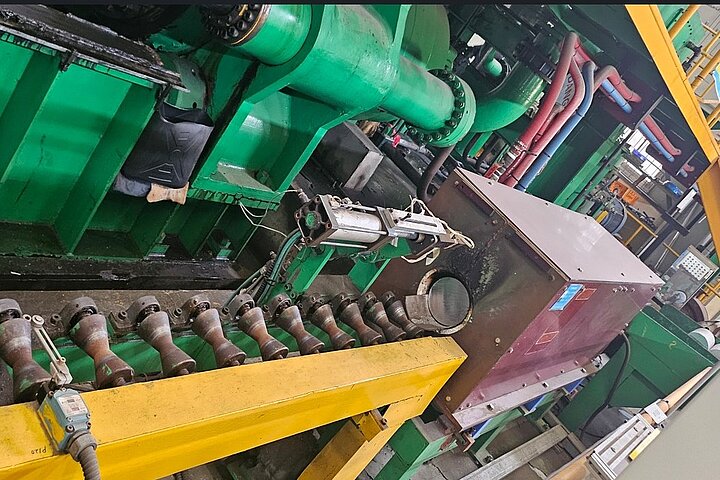

1) Induction billet heater: Korean-made, built: 1999, 200 kW, including billet loader

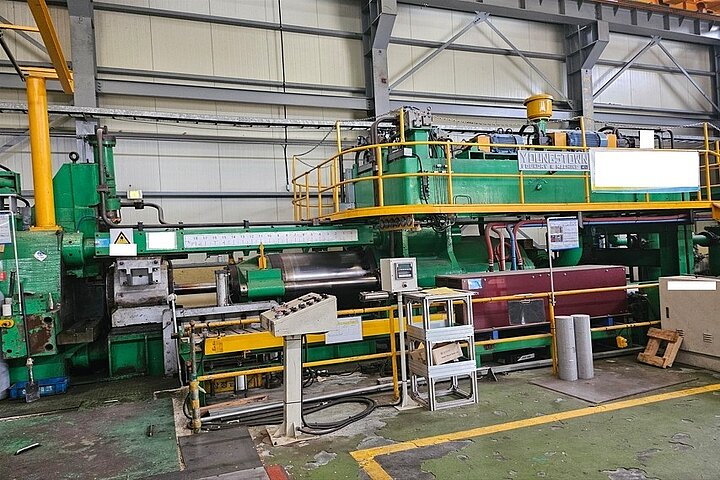

2) Extrusion press, Youngstown USA                      Rated Extrusion Force: 1650 MT

Main Ram Stroke: 1,200 mm                                    Extrusion Speed Range: 15 mm/sec.

Max Extrusion Pressure: 20 – 25 MPa

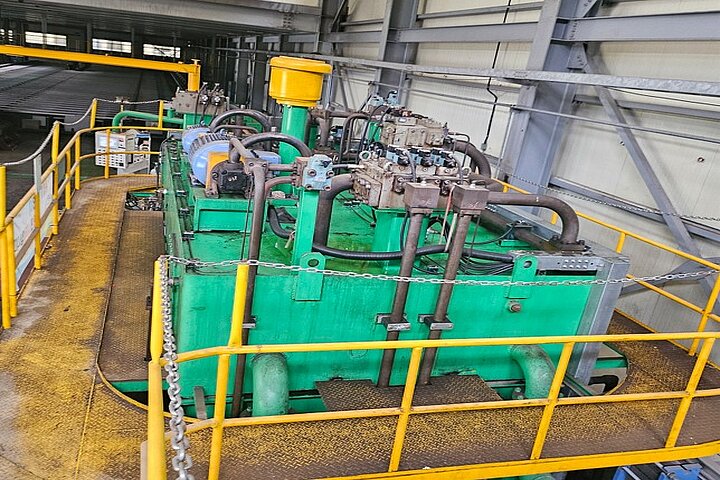

Hydraulic system:                                                      Main Working Pressure: 20 – 25 MPa

Main Motor Power:     2 x 132 kW                             Oil Tank Capacity:     8,000 liters

Hydraulic Pumps:       2 x Kawasaki LZ-500-110R1 (600 L/min.)

Oil cooling pump:       120 L/min.

Billet & Container:      Container cylinder:     ø 203.2 mm

Container Heating:     Induction                                 Billet Diameter: 150 x 550 mm

Die & tooling:              Max Die Diameter: 230 mm   Die Change System: Manual

Die heater

3) Run-out table         Length:           40 mtrs            Cooling: water/air

Profile support rollers

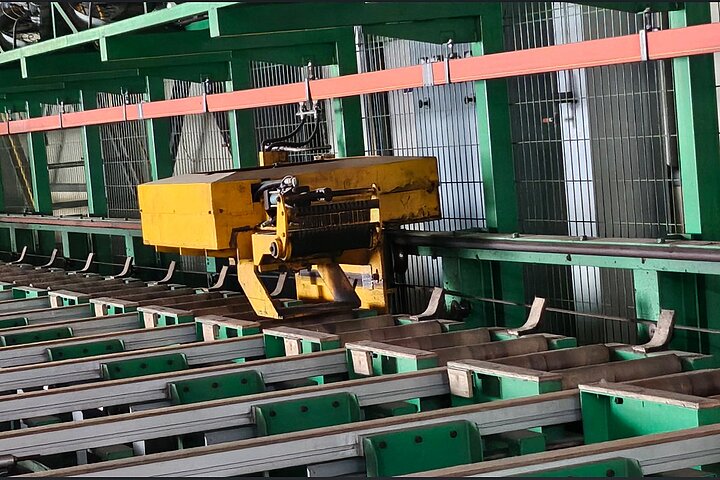

4) Puller                      Speed sync. with extrusion    Gripping: Hydraulic

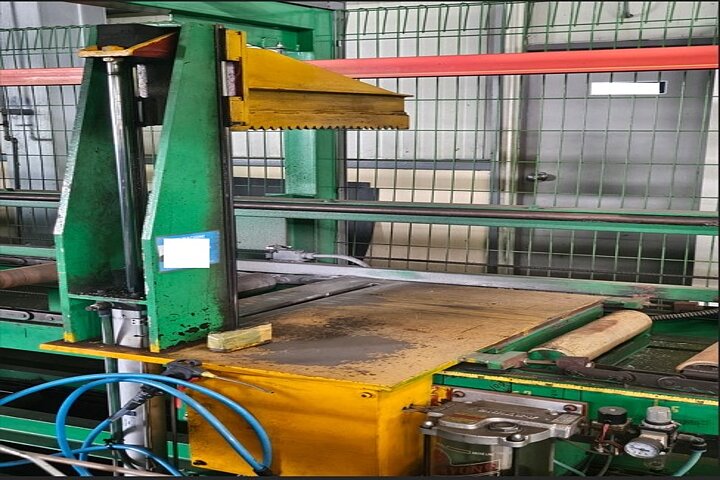

5) Shear                      Cylinder: ø 155 mm               Stroke: 571.5 mm

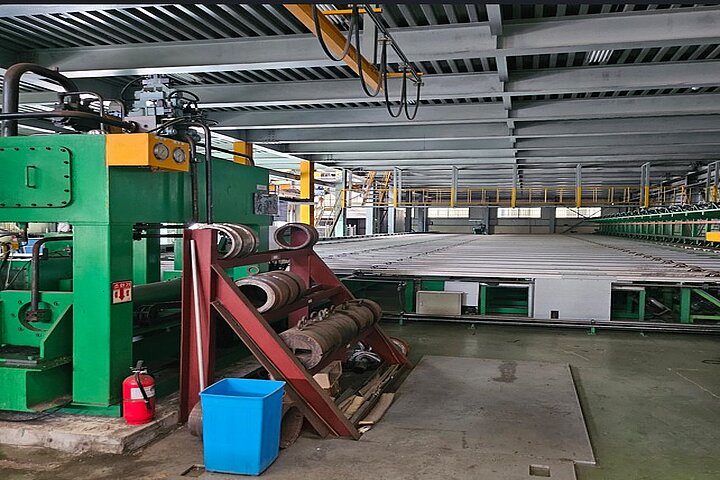

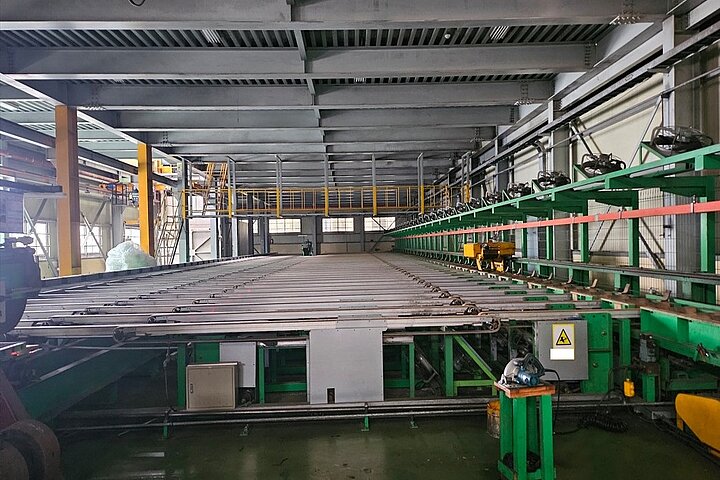

6) Cooling bed                       Length: 40 mtrs

7) Stretcher                 Capacity: 25 tons                   Length: 30 mtrs

8) Cutting Saw

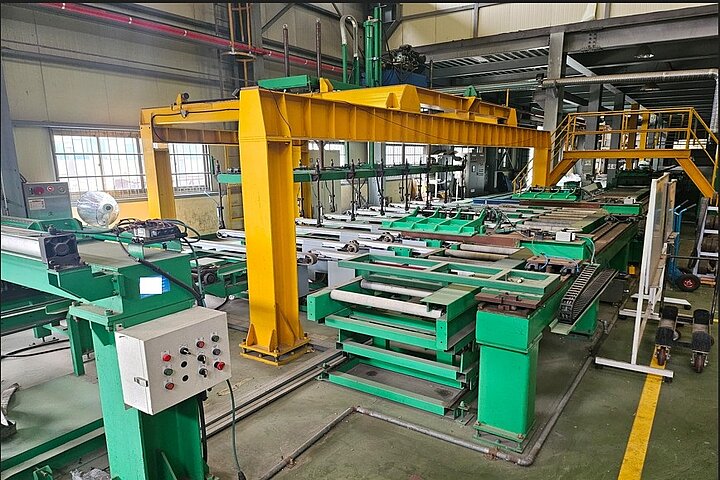

9) Packing system      Profile stacking & Bundle tying
