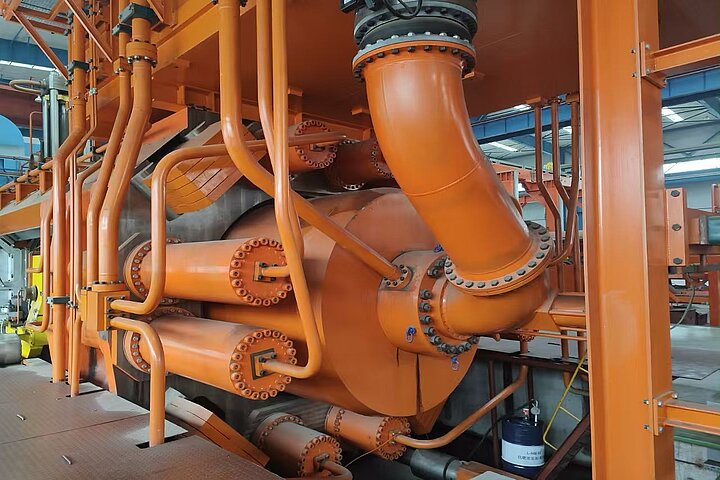

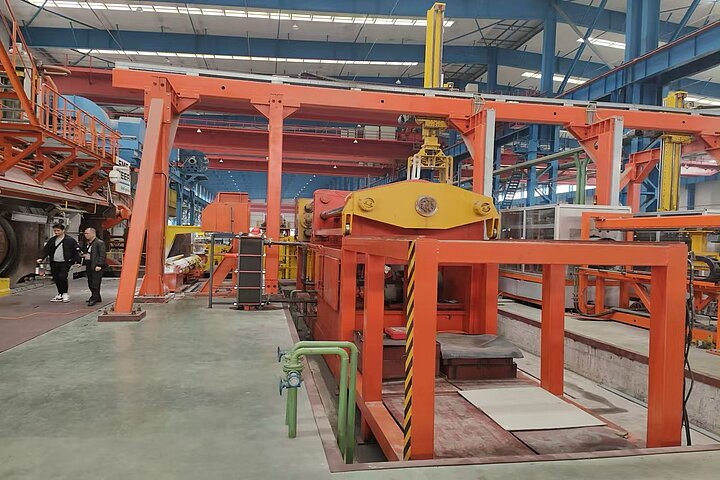

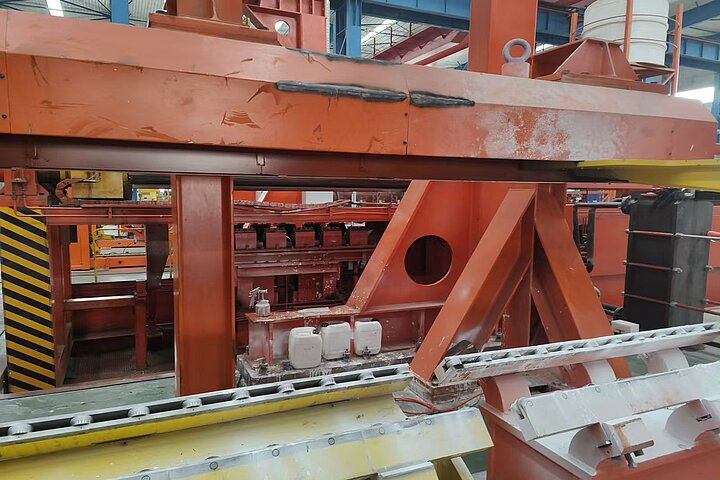

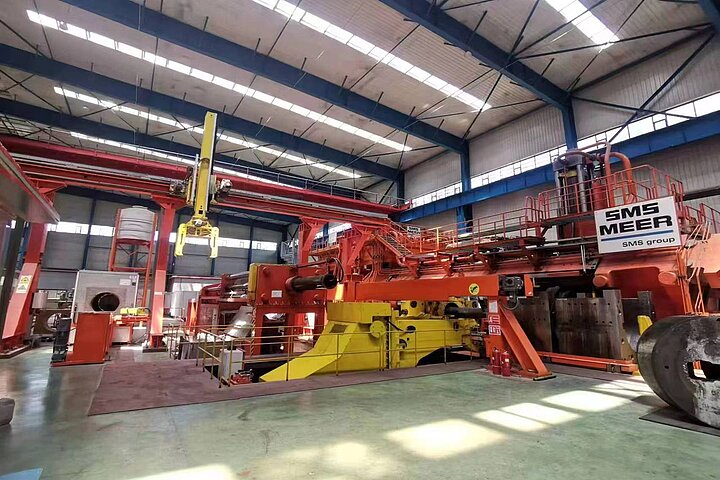

Qty. 1 Second-hand 160 MN Horizontal Direct Single Action Extrusion Press

Mfc.: SMS, Force: 16,000 MT, Built: 2015/2016

Type: Short-Stroke Extrusion Press - front loading system

Billet dim.: Dia. 610/720 x 750 – 2500 mm

PLC: Siemens S7

Extruded only approx 5000 tons during 6 months!

Quenching box length: 13 m, Hood length: 8 m, Bottom air cooling length:  25 m

Scope of supply:

Induction Billet Furnace, Extrusion Press, Quenching System, Puller, Run-Out Table, Stretcher, Finishing Saw, Profile Stacker, Die Oven, Billet Peeling Machine

Technical Specification

Induction Billet Heater

Mfc.: IAS, Billet dimension.: dia.: 610  / 720 mm x length: 750 – 2500 mm

Max. heating temperature: 570 °C

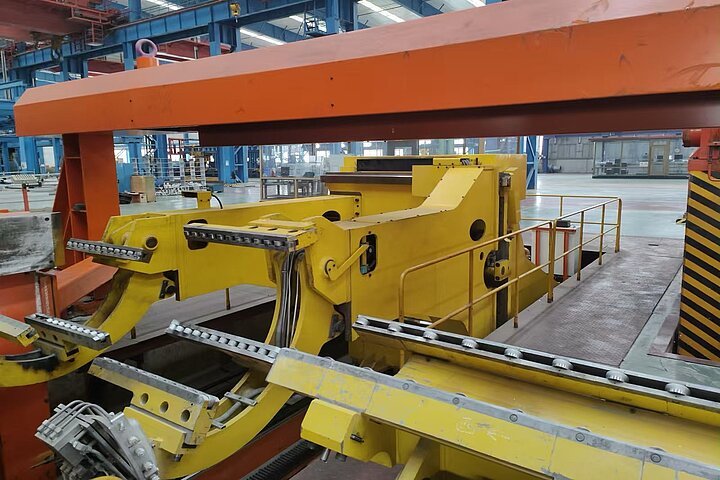

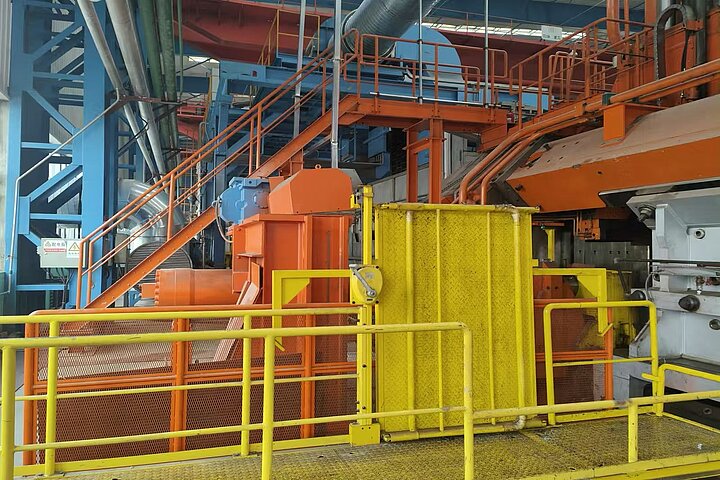

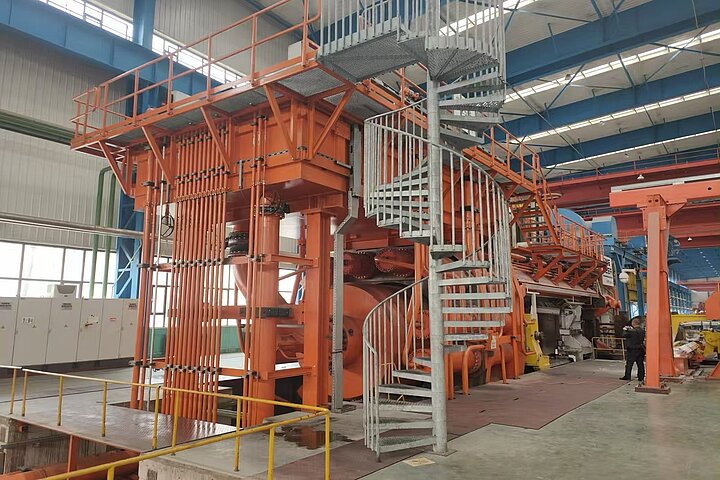

Extrusion press: Mfc.: SMS, Extrusion force: 16,000 MT

Main cylinder: 13,560 MT, Side cylinder: 2,440 MT

Working pressure: 31 MPa, Main cylinder dia.: 2,360 mm

Side cylinder dia.: 360 mm x 4 pcs, Return force: 10.8 MN (10,800 MT)

Extrusion stroke: 3,700 mm, Billet length: 900 – 2500 mm

Container inner dia.: 615 / 735 mm, Extrusion speed: 19.5 mm/sec.

Extrusion speed at 160 MN: approx. 10.6 mm/sec., Min. speed: 0.20 mm/sec.

Billet container:

Sealing  force, variable max.: 22.4 MN

Container stroke: 3850 mm, Container length: 2750 mm

Container weight: approx. 84,000 kg

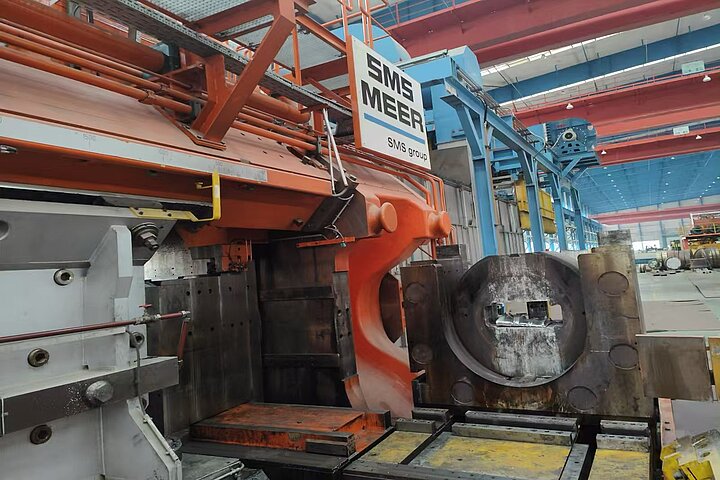

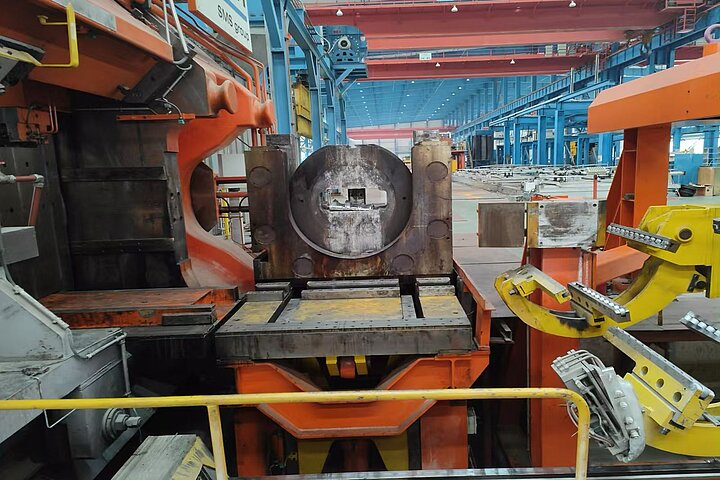

Shears: Discard shear: 8.9 MN, section shear/ die slide: 3.6 MN

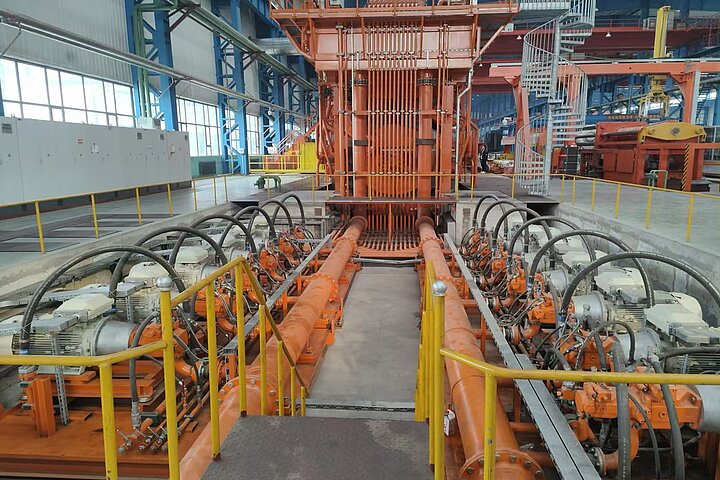

Hydraulic

12 HP oil pumps         Mfc.:    Rexroth           Type:   A4VSO 355)            each pump:

Operating    pressure, max.: 310 bar              Flow  rate, max.:            515  I/min

Drive rating:                160 kW, 1500 RPM, B35, IP54

Quenching System                 Mfc:     OMAV

Max profile height:                  750 mm           Max profile width:             1150 mm

Roller width:                            1300 mm         Roller gap:                  400 mm

Max loading of run-out table: 260 kg/m         Max loading of cooling table:160kg/m

Cooling type:                           fog/water spraying/air

Max cooling capacity:             1500 mm (W) x 750 mm (H)

Max fog cooling capacity:       400000 m³/h    Max air cooling capacity: 670000m³/h

Max water cooling flow:          450 m³/h         Quenching cover length: 16 m

Puller                                      Mfc.:    OMAV

Max pulling width:                   1150 mm         Max pulling height:            750 mm

Pulling force:                           0.15-20 kN      Saw blade diameter:            2000 mm

Puller rail length:                     110 m

Run-Out Table                        Mfc.:    SINO-HEAVY MACH,

Total dimension:                     140 x 31 m      Initial table length:       58 m

Beam gap:     1200 mm        Horizonal transfer distance:              0-1150 mm

Stepping speed:                    20 m/min        Transition table gap: 1200 mm

Stretcher                                Mfc.: SINO-HEAVY MACH,

Max stretching force:             12 MN            Max stroke: 2500 mm

Profile length:                         8 – 58 m         Clamp size: ø750/200 * 1150 mm

Rotation angle:                      ±20º

Finishing Saw                        Mfc.: SINO-HEAVY MACH,

Saw blade diameter:             2100 mm        Infeed speed: 20-200 mm

Cutting range:            ø750/200 * 1150 mm            Gauge distance: 1.1-30 m

Cutting precision:      ±2 mm

Profile Stacker                        Mfc.: SINO-HEAVY MACH,

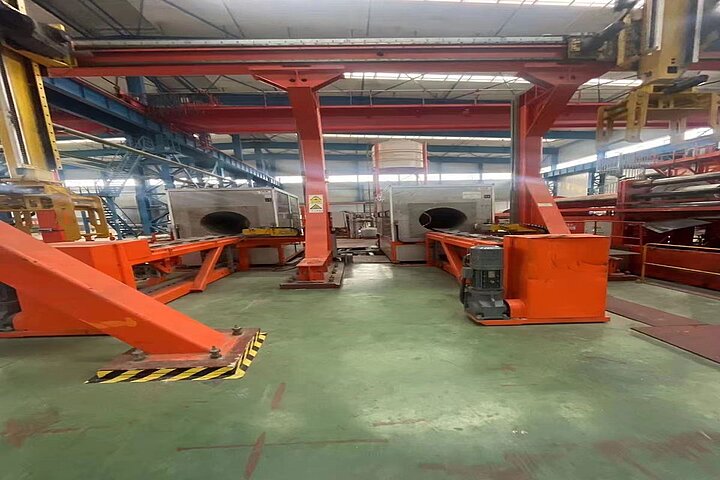

Die Oven                                Mfc.:   Zhujiang

Billet Peeling Machine           Mfc.:    Zhujiang
