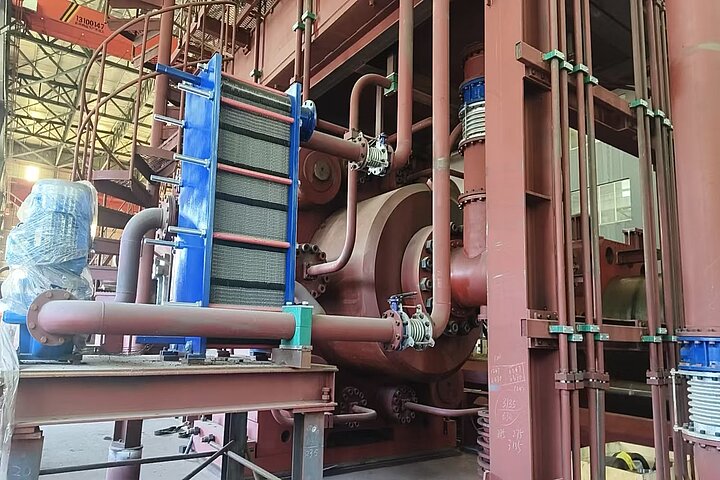

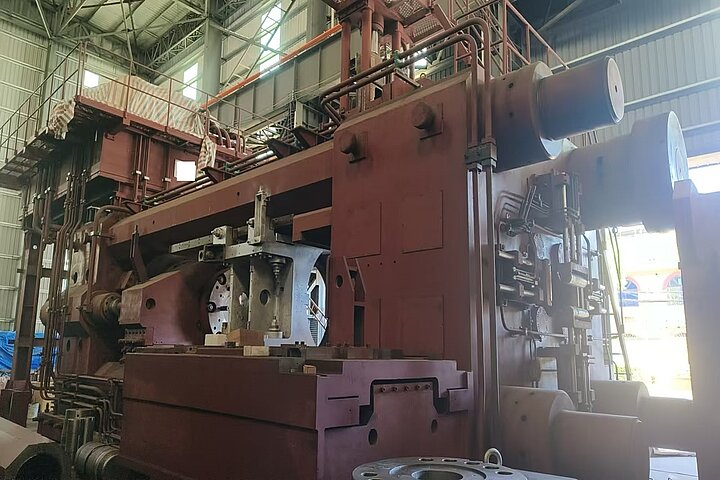

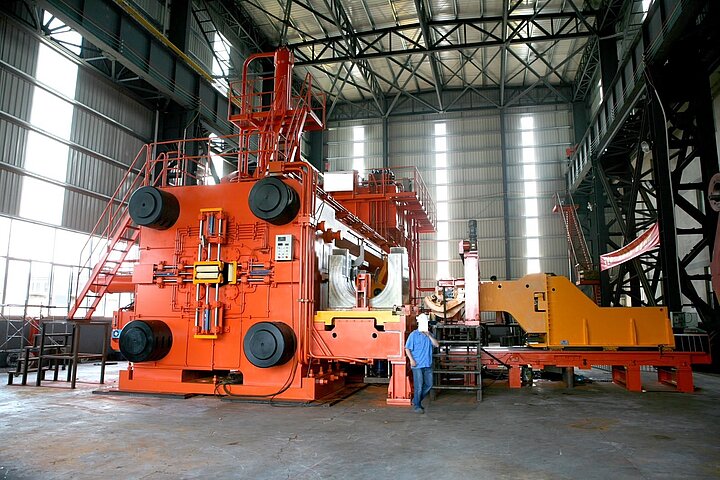

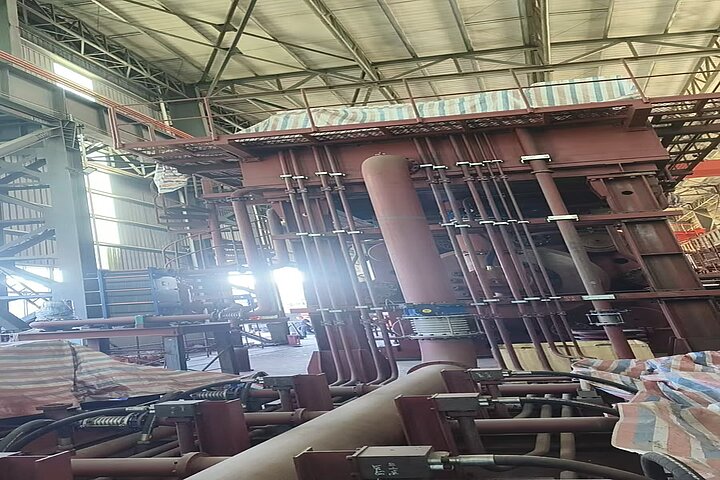

Qty. 1 Second-hand 85 MN Extrusion Press - 20" billet

Mfc.: TOP CHINESE COMPANY

Force: 85 MN

Type: Loading Single action short stroke

Built: 2026 – Never used!

Billet dia.: 520 mm x 900 - 1800 mm L

Ready for painting according to buyer’s requirement.          Ready for shipment!

All missing parts of the complete line can be also quoted, if requested.

SCOPE OF SUPPLY

85 MN short stroke single action direct extrusion press      Hydraulic type loader

Billet-transfer loader               Scrap-transfer device             Billet lubrication device

Extrusion tool             Scrap Knocker            Die shuffle      Die Pusher      Hydraulic System

Electric System          Spare parts

Specification

Working pressure:      28 MPa                       Nominal extrusion force:        85.2 MN

Main Cylinder force:   77.04 MN                    Auxiliary Cylinders (2) advancing force:  8.15 MN

Auxiliary Cylinders (2) return force: 4.69 MN

Sealing Force of container cylinders (2), separate hydraulic pump providing oil,

pressure can be adjusted 8.47 MN

Opening Force of container cylinders: (2) 6.21 MN

Butt shearing force:    2.85 MN                                 Die slide shearing force:        2.25 MN

Butt ejector force, hydraulic type: 0.05 MN               Bolster shear force:               1.72 MN

Down-holder force:    0.57 MN                                 Extrusion stroke:                    2250 mm

BILLET / CONTAINER

Billet diameter:           Փ520 mm                               Container dia. (room temp.): 532 mm

Container length:        1850 mm                                Billet length:                900 - 1800 mm

Tool size and front platen hole

Tool stack max. dia. / length:            Ø980 x 950 mm

Platen hole maximum dimensions:    570 mm x 800 mm – H x W

PERFORMANCES

Extrusion speed:        0.2 - 20 mm/sec.        Non-extrusion time (excluding exhaust): ≤35 sec.
