Ref. No.:EXTRUSIONPR260802
YEAR:2001
Brand:UBE Japan
Qty:1 Second-hand extrusion press - 8000 MT

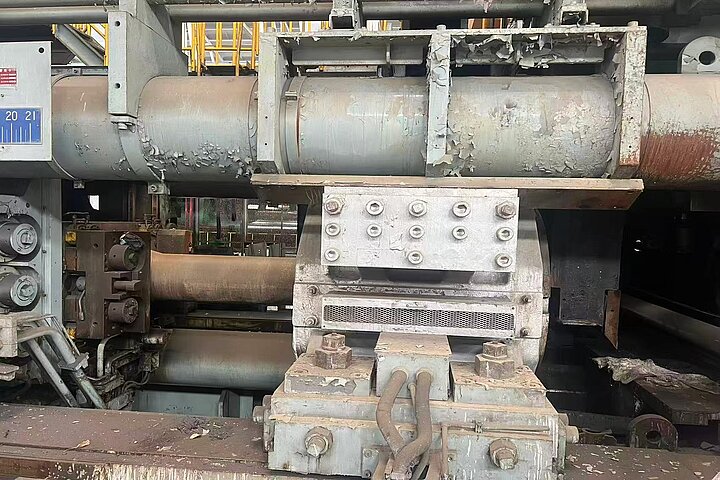

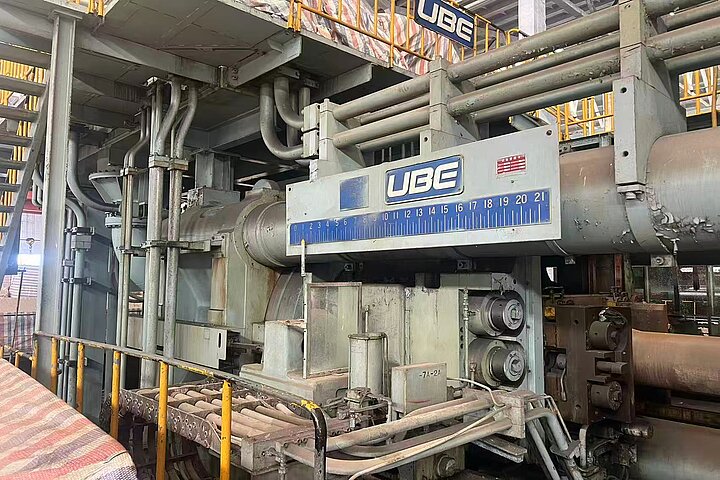

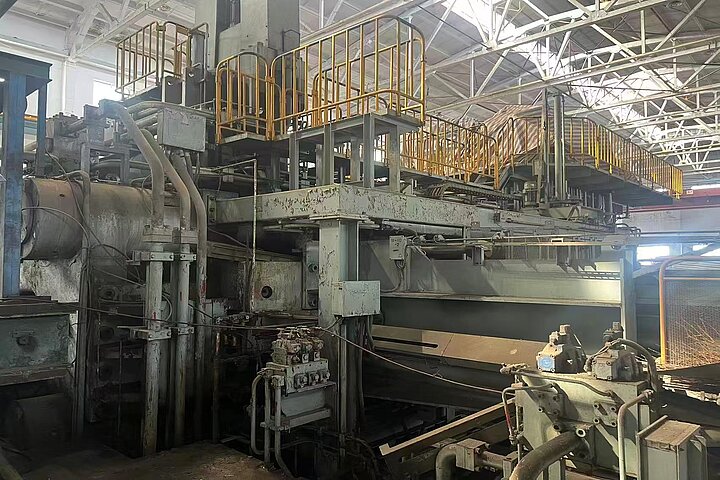

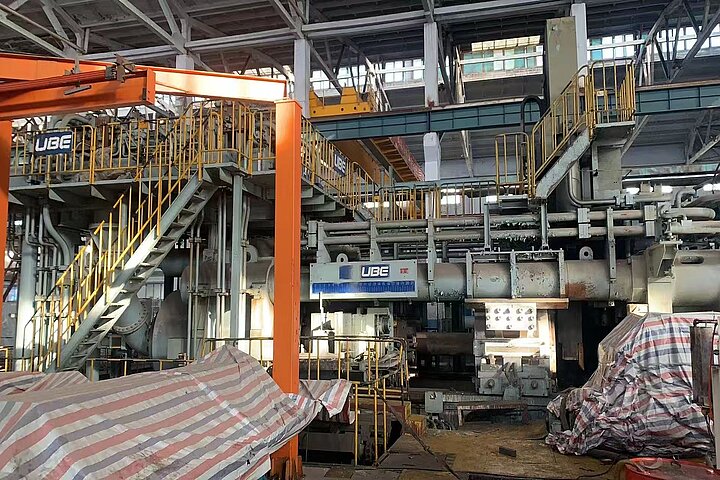

| Description | EXTRUSION PRESS - 8000 MT - DIA. 17.8" - 22'' |
| Ref. No. | EXTRUSIONPR260802 |
| Year | 2001, stopped: 2015 |
| Brand | UBE JAPAN |
| Qty. 1 Second-hand extrusion press | |
Force: Type: Billet dia.: General specification:
| 8000 MT Horizontal oil hydraulic 450 - 560 mm, Length: 500 – 1600 mm Max. extrusion pressure: 28.7 MPa, 80.39 MN (26.8 MPa, 70 MN) End force: 28.7 MPa, 11.28 MN Return force: 25.9 MPa, 3.66 MN Extrusion barrel sealing force: 28.7 MPa, 8.13 MN Cylinder opening force: 20.6 MPa, 7.92 MN Main shearing force: 25.9 MPa, 2.64 MN Mold sliding shear force: 25.9 MPa, 1.71 MN Extrusion head rapid approach speed: 300 mm/sec. Extrusion speed: 80.39 MN – 25.3 mm/sec., 75 MN- 27.1 mm/sec. Extrusion barrel sealing speed: 270 mm/sec. Extrusion barrel opening speed: 200 mm/sec. Main shear blade descent speed: 290 mm/sec. Main shear return speed: 370 mm/sec. Main pump motors 10 units: 240 kW Qty. 3 Cooling pump motors: 11 kW Auxiliary pump motors: 45 kW (1), 37 kW(1), 65 kW (1), 90 kW (1) Extrusion barrel heater: 177 kW, 380 V, 3 ph., 50 Hz Total power: 2,670 kW |
