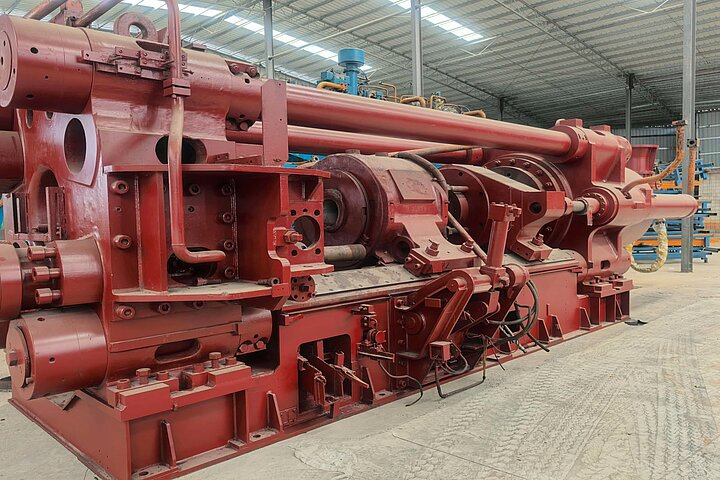

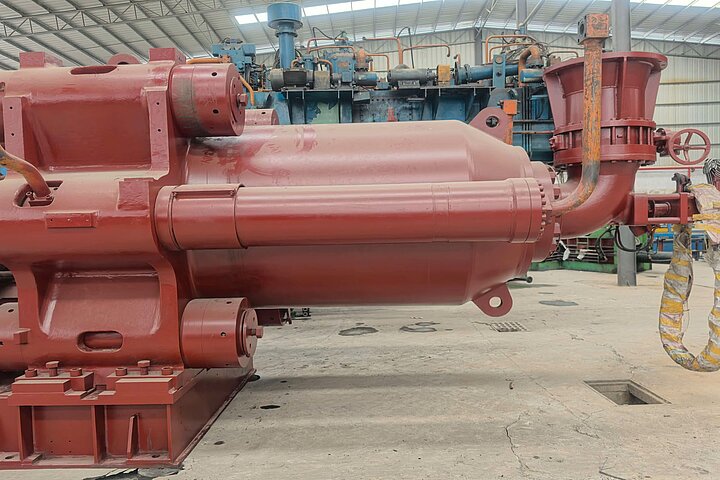

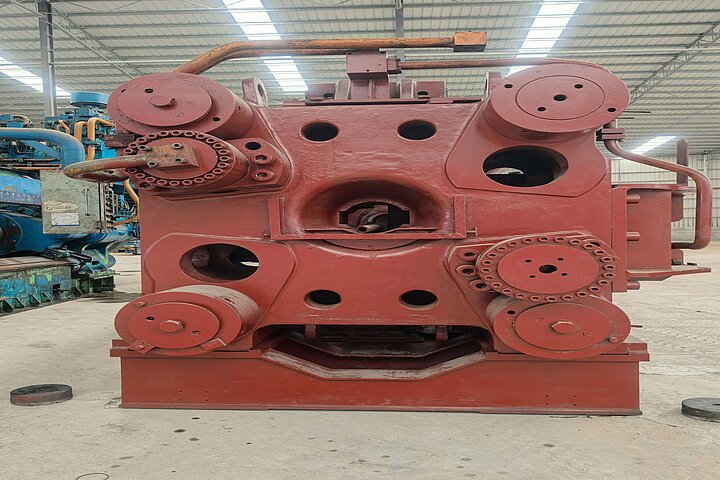

Qty. 1 Second-hand Extrusion Press - 10" billet

Mfc.: UBE, Force: 2750 MT, type: Horizontal, Oil hydr.

Built: 2017, Stopped:         2025

Billet size: Ø 254 (10") × 1000 mm Length

Speed press go out: 20 ㎜/sec

Empty vehicle forward one cycle: 20 sec                 Output-theoretical cycle time: 160 sec

Specification:

1. Engine Cylinder Pressure: 2470 T, 230 ㎏f/cm    2. Auxiliary Cylinder: 330 T, 230 ㎏f/cm

3. Shengding Drum: Opening size 164 T, 120 ㎏f/㎝                       Shengding Cylinder:153 T 120 kg/cm

4. Shearing Hydraulic Cylinder: 47 T, 150 ㎏f/㎝     5. Mold oil cylinder: 20 T, 100 ㎏f/㎝

6. Fuel Supply Cylinder: 6.3 T, 80 ㎏f/㎝

Dimensions:

1. host crock: Ø1170 ㎜                                            2. Auxiliary Cylinder: Ø300 ㎜ × 2 pieces

3. Sheng Auxiliary Cylinder: Ø280 ㎜ × 2 pieces     4. Shearing Cylinder: Ø200 ㎜ *1 piece

5. Mold Cylinder: Ø160 ㎜ *1 piece                          6. Feed Cylinder: Ø100 ㎜ × 2 pieces

7. Front bumper thickness: 800 ㎜                            8. Master cylinder wall thickness: 950 ㎜

9. Cross-wall thickness : 400 ㎜                               10. Tension Column Diameter: Ø310 ㎜

11. Outlet opening size: 340 × 290 mm                    12. Mold base diameter: 460 × 430 mm

13. Main ram (plunger) diameter: 1170 mm

Hydraulic System                                           Brand-new oil circuits and brand-new valve plates

The main oil pump is a Kawasaki 500 L variable pump, with 3 units installed.

            Main motors: three units, 150 kW each

            Additional motor: one 37 kW motor, paired with one Tokyo Keiki vane pump (200/125)

Low-pressure pump: 1 unit    double-shaft vane pump SQP43-75/45

The oil pump used for the locking and pressure maintenance of the coil transfer cylinder is one unit of A2F 12.

Oil pressure control valve:     High-pressure section – Jiu Gang, Taiwan

Customization available: The oil circuit and valve system can be modified according to customer requirements. Adjustments to the mold dimensions and outlet opening size are also possible (within safe operating limits).

Electrical Equipment

Power supply voltage: AC, 380 V/220 V, 3 ph. – four wire, 50 Hz,

The main motor utilizes original Japanese electrical components:

150 kW, 6-pole, 3-phase, 380 V, 50 Hz, with 3 units

The pressure-driven motor has a power rating of 7.5 kW, with one unit.

Heat exchanger motor: 3.75 kW, 1 unit;       Heat exchanger: 30 m²,1 unit

Motor for ladle cylinder locking and pressure maintenance: 5.5 kW, 1 unit

Tin charging cylinder electric heating system:          Set temperature: 400°C

Circular electric heating tubes:

415 V/240 V, 2.5 kW each, 27 units per set, total capacity: 67.5 kW per set

Electric automatic control unit:          The PLC uses Mitsubishi series.

The circuitry is brand new; the contactors are manufactured by Mitsubishi or Schneider

Configuration and Specification Dimensions

Fuel tank capacity: 170 liters (approximately 45 barrels of hydraulic oil).

Discharge port dimensions: 290–340 mm

The shears feature a square shape & are equipped with a residual pressure striking

mechanism.

Mold dimensions: Ø430 × 460 mm L

Center height of discharge port: 900 mm

Equipped with a dedicated pressure maintenance system for the ingot holding cylinder

Machine dimensions: L14000 * W4570 * H4850 mm
