Specification:

Production Products: Automobile Sensor Cover, Building Material, etc.

Press force: 1450 Ton                                   Pressure: 310 bar (4,500 PSI)

Extruding Center: 1000 mm (39.3")              Extruding Height: 3400 mm (133.8")

Hole of Billet Diameter: 160 mm (6.3")         Stroke: 960 mm (37.8")

Press Speed: 23 mm/sec, Max. (0.9"/sec) Variable

Control System: Siemens S7

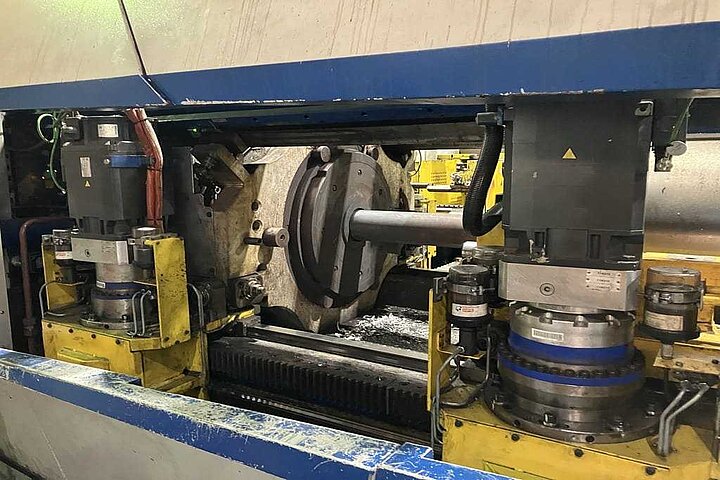

Billet Container:

Pressing Force: 140 Ton                               Pullback Force:  100 Ton

Intake Stroke: 1155mm (45.5")                     Hole Range: 160mm (6.3")

Container Length: 830mm (32.6")                 Billet Length: 250 - 800mm (9.8" - 31.5")

In the case of billet has been split into two:  200 mm (7.8")

Diameter of the Profile/Tool Package:

Pressure Plate Opening: 190 mm (7.5") Dia. x 230 mm (9") Wide

Tool Package: 330/277.55 mm (13"/10.9") Dia. x 380 mm (15") High

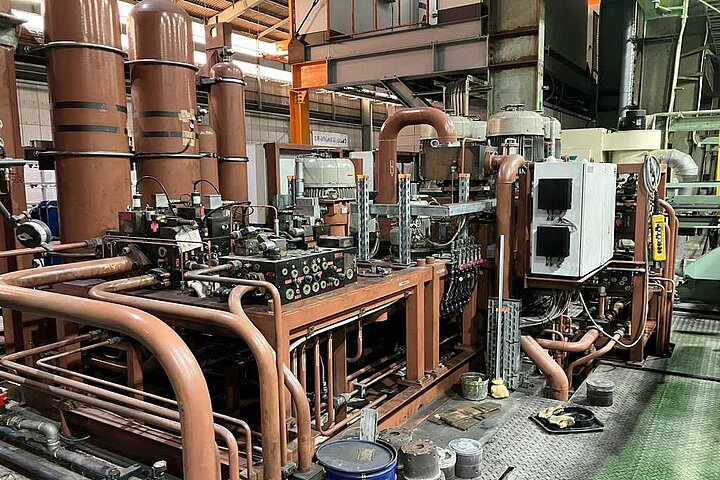

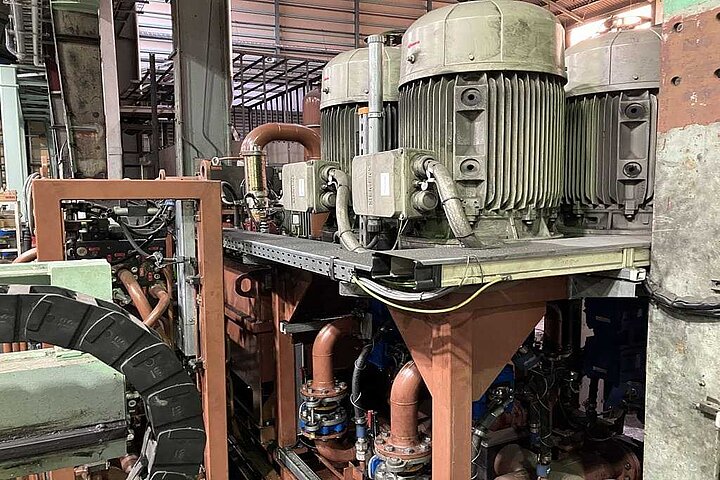

Hydraulic System:

Four High Pressure Oil Pumps (Double Internal Gear Pumps)

Operation Pressure:  310 bar, Max. (4,500 PSI)

Transport Amount Max.: 172 Liters Per Min.

Drive Force: 75KW     Drive RPM: 400 - 2200 RPM             Motor Type: V1

High Pressure Control Pump:

One High Pressure Pump

Operation Pressure: 320 bar, Max. (4,600 PSI)

Transport Amount, Max: 9.2 Liters Per Min.

Drive Force: 5.5 kW   Drive RPM: 400 - 1500 RPM             Motor Type: V1

Low Double Pressure Pump:

One Low Double Pressure Pump

Operation Pressure: 200bar, Max. (2,900 PSI)

Transport Amount, Max.: 90 Liters Per Min.

Drive Force: 37 kW    Drive RPM: 400 - 1500 RPM             Motor Type: V1

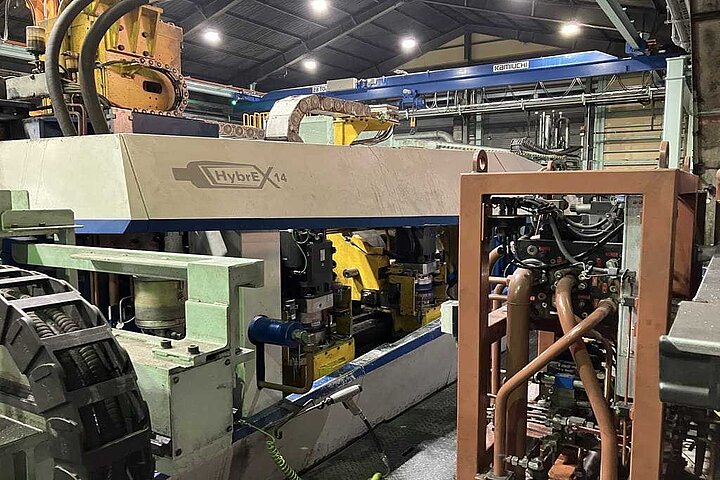

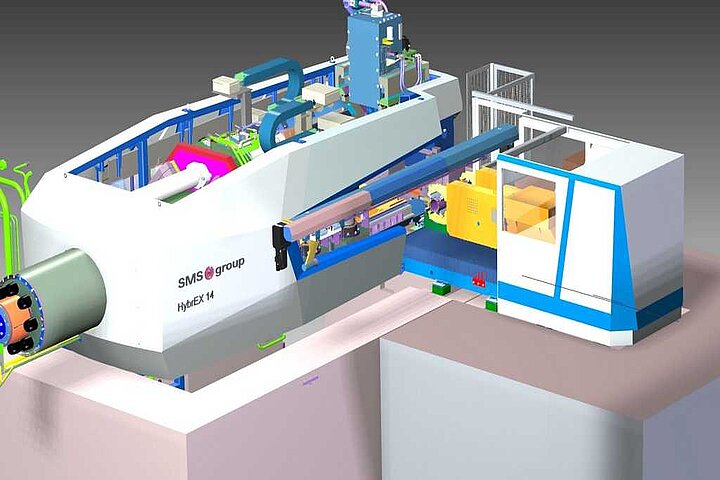

HybrEx Drive (Hybrid electric/hydraulic design)

Servo Electric Drive

Billet Container Drive: 15.7 kW x 2 Units

Operation Cross Head: 31.7 kW x 2 Units

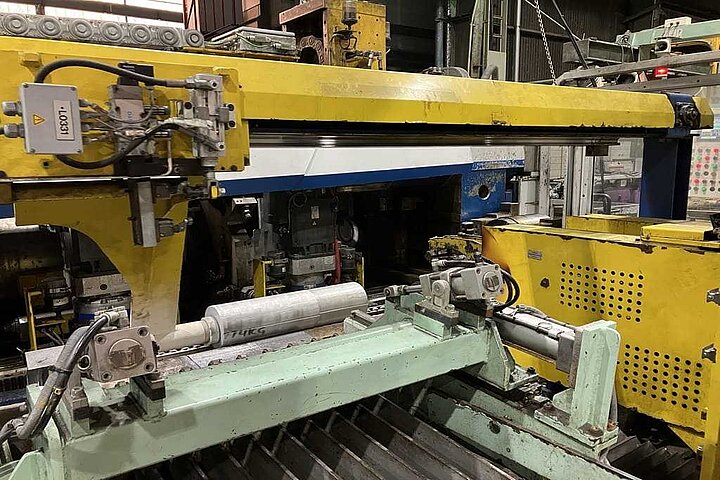

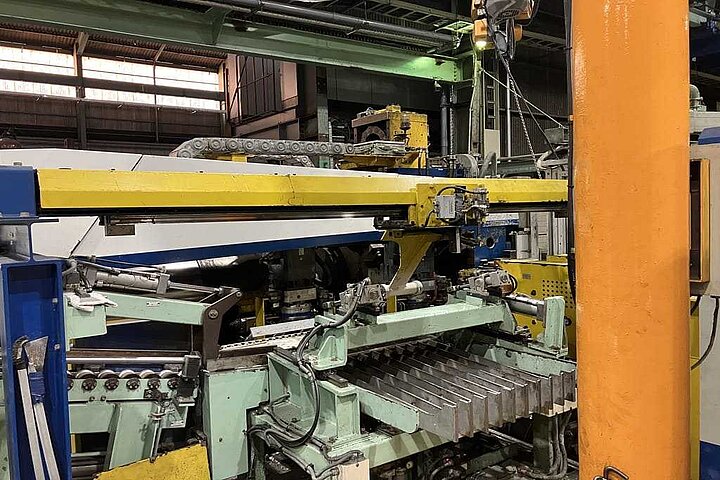

Billet Loader: 14 kW

Electrics:

Operation Voltage: 440 V plus minus 5%, 3 Phase

Frequency: 60 HZ

The connected load of the motor switching device: 600 kVA

The connected load of container heater switching device: 35 kVA

Billet Container:

Total Electric: 15 kW x 2 Units

Hole of Billet Diameter: 160 mm (6")

Specific Pressure of Press: 721 N/mm2 (105,000 PSI)

Length: 830 mm (32.6")         Weight: 2,800 kgs

Compressed Air: 6 bar

Billet heater is included in the scope.
