Qty. 1 Second-hand cast house for billet production incl. filtration system

Mfc.:    Gautschi, Mechatherm, Weishaupt, PEHAKA, FISONS, Dantherm Filtration GmbH

Built: Unknown

The machine is very strong design and still running well because it has been maintained always with original spare parts and qualified experts.

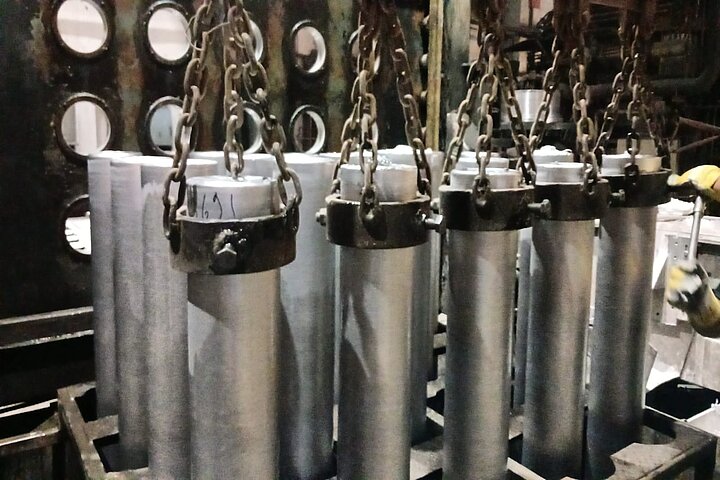

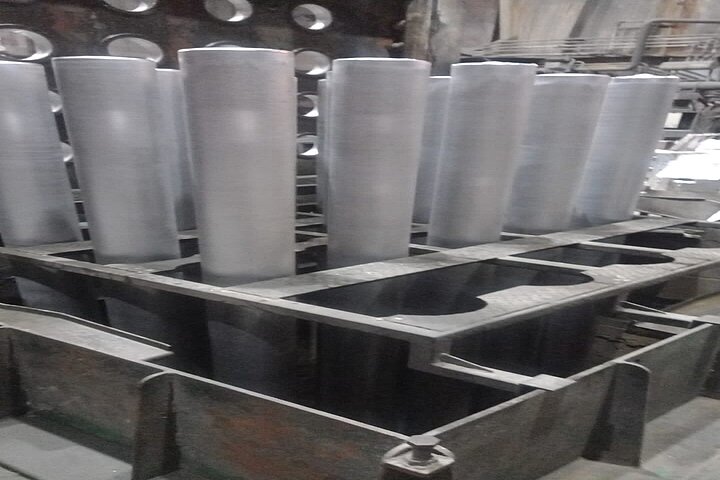

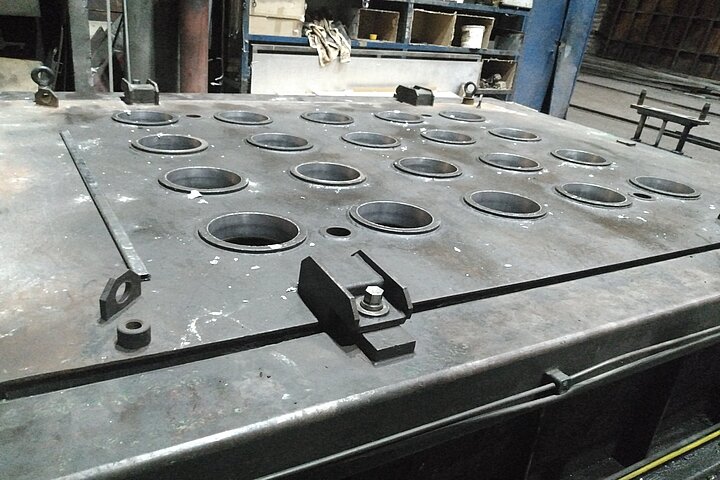

Direct casting on a vertical table and make billets of 6'' and 8''.

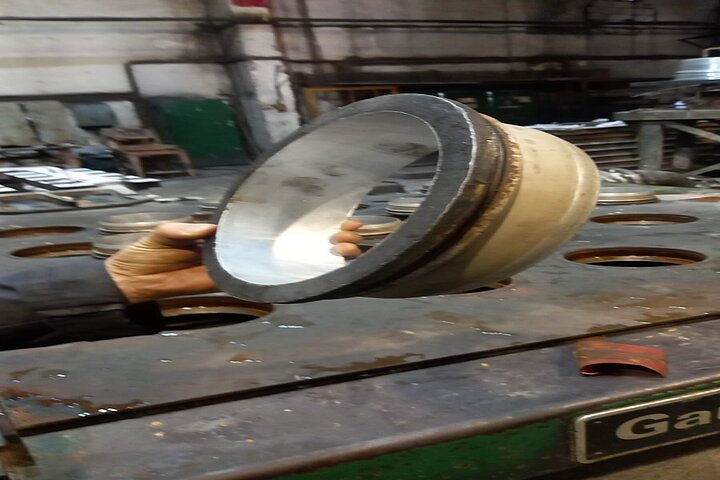

To make 9'' the tool of the table can be modified.

The vertical caster can work with 9'' by remachining and modifying the tool table.

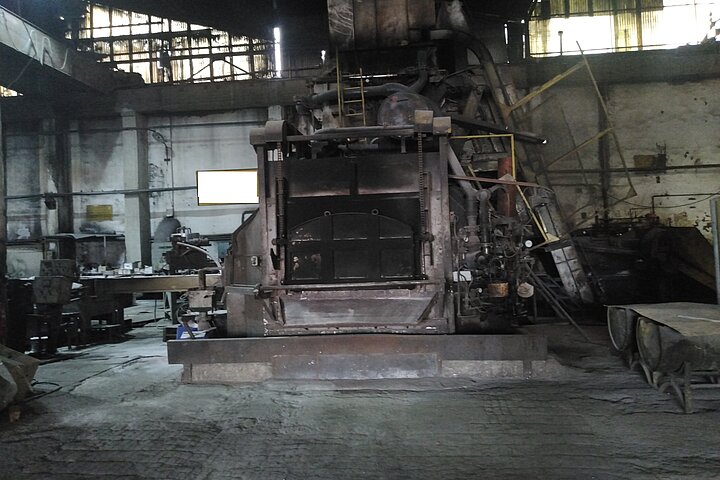

1 Melting and Tilting furnace GAUTSCHI, Capacity 20 T, Fuel Oil Burners

The furnace has an elevator charging machine to load the scrap from the top of the furnace

Degassing unit FILD from MECHATHERM England Nitrogen treatment and filtering

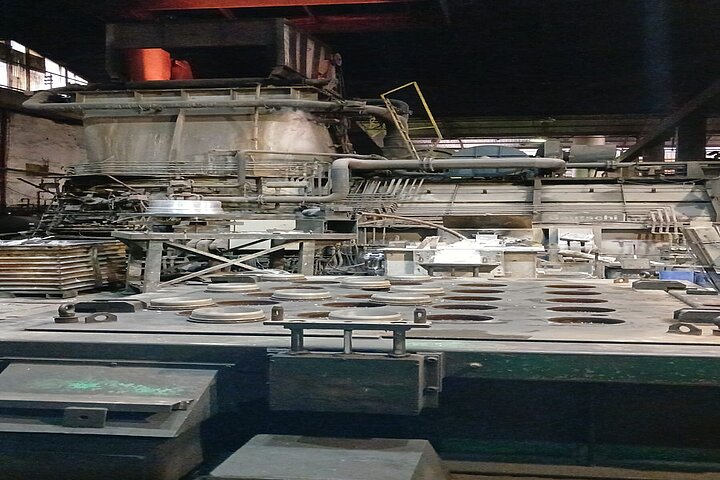

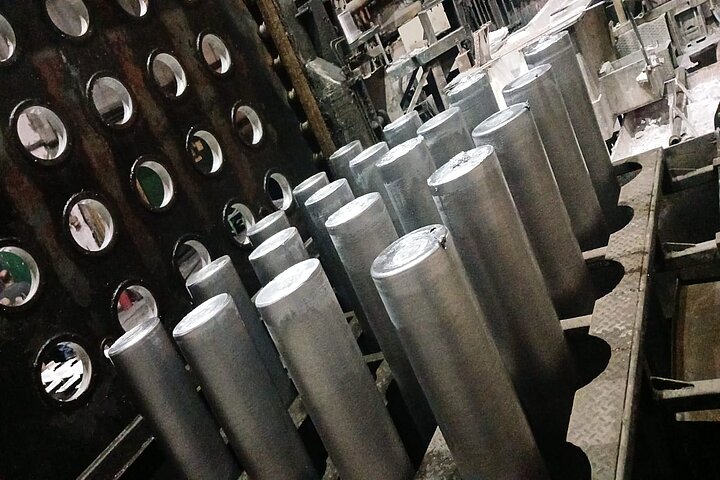

1 Vertical caster for billets 26 x 6’’ and 20 x 8’’ for useful log length 6 m

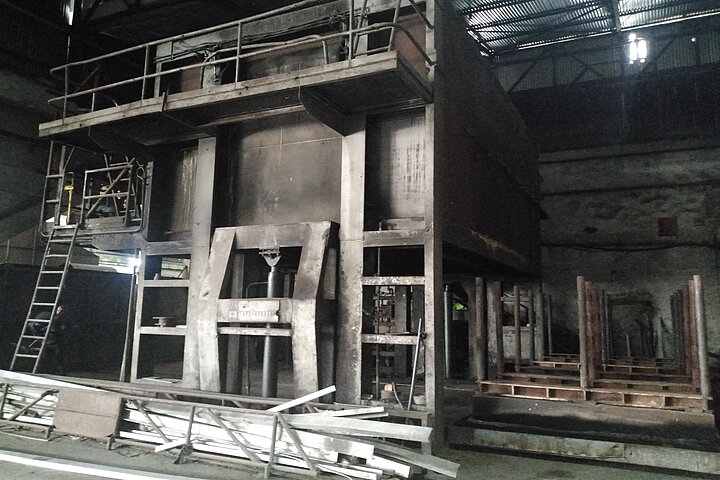

1 Homogenizing furnace, Fuel Oil Burners Weishaupt, Burner supplied in 2008

Homogenizing Furnace from AUBURTIN and fan cooling chamber

The burners for both furnaces are working with fuel oil

Air cooling chamber MECHATHERM with 3 ventilators 37 kW

1 Sawing machine PEHAKA roboter 440Z model PEHAKAMAT 340 ZP for billet extremity

1 Scrap balling press

1 Scrap profile saw

1 Spectrophotometer FISONS Instruments reference 2460-431/19011-5897 for sample analysis

1 Dust filtration system          Mfc.: Dantherm Filtration GmbH        Built:    2010

            Type: FS 722/7, 75/1085 – Cassette – type filter

Application:     Aluminium melting furnace

            The dust collection plants are intended exclusively for cleaning air laden with

            Dust and/or noxious substances.

Volume: 80 000 m³/h             Temperature:  120 °C            Filter medium: Synthetic fibre

Overall installed filtering area:  1628 m²                   Effective filtering area:  1533 m²

Power of all drives:    approx. 10 kW                        Cleaning air fan:  L 93 dB(A)

Measuring surface sound pressure leveö in 1 m distance for free suction.

The entire dust collection plant represents the state of the art and complies with the

Accident prevention regulations (UVV) and the regulations of the Association of German

Engineers (VDE) and to the valid, safety specifications of the EC.
