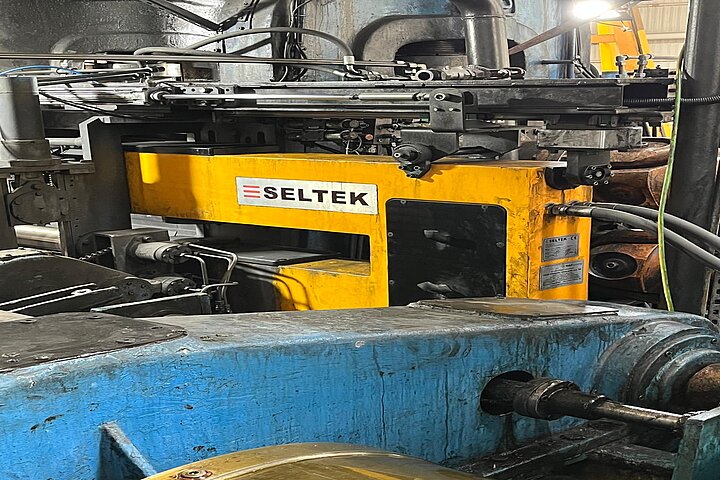

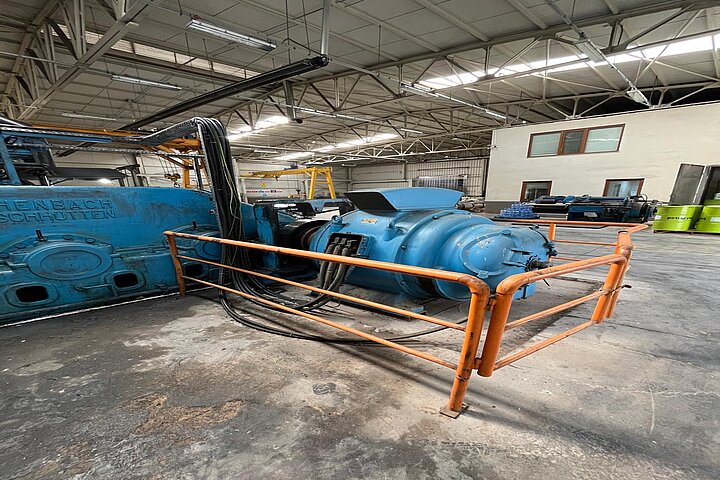

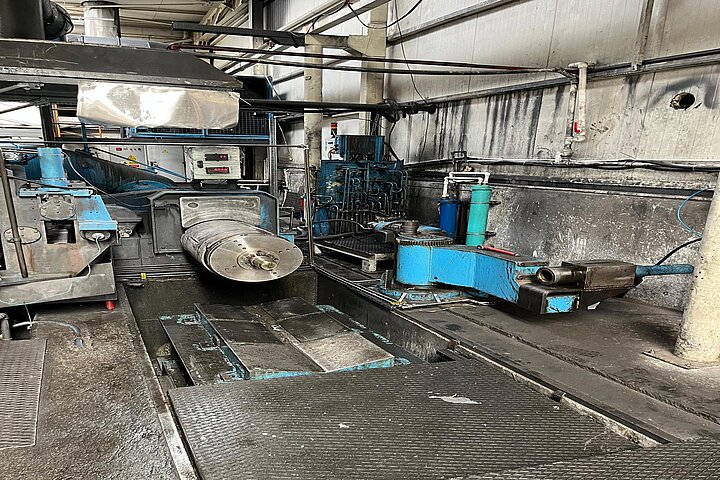

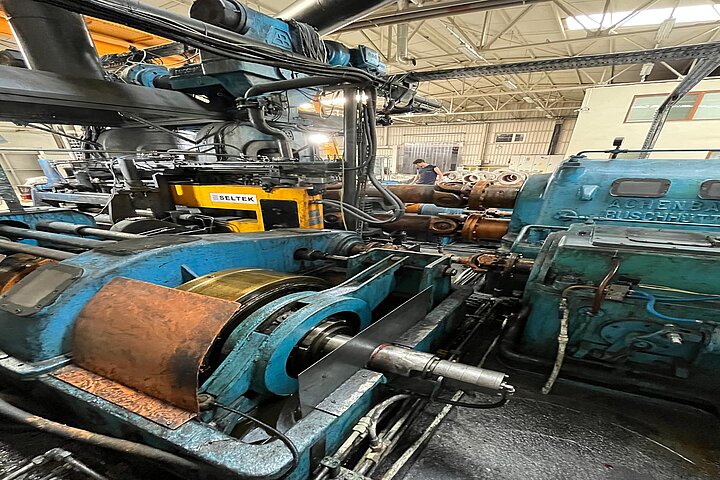

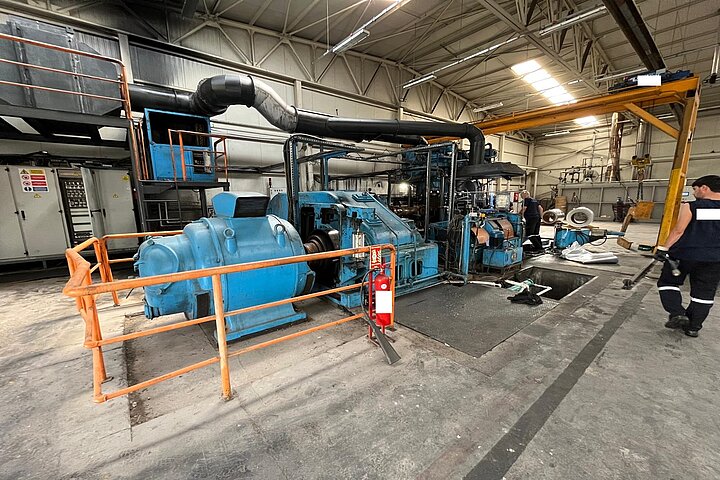

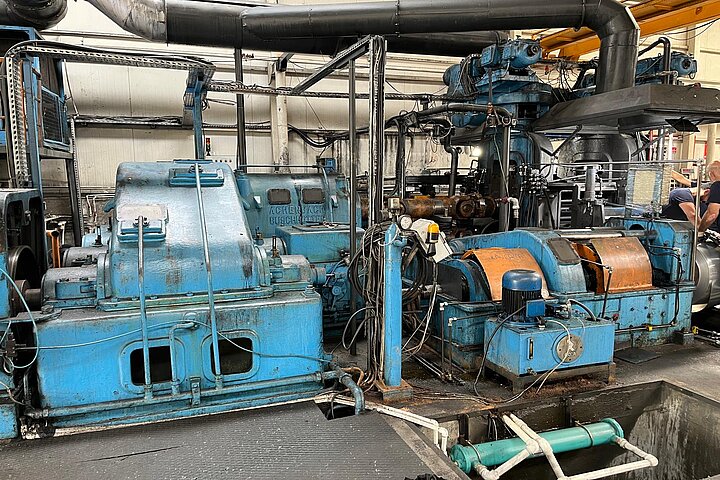

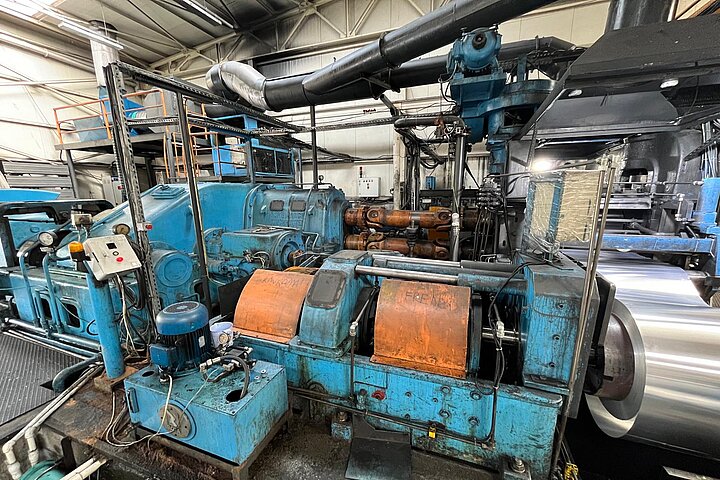

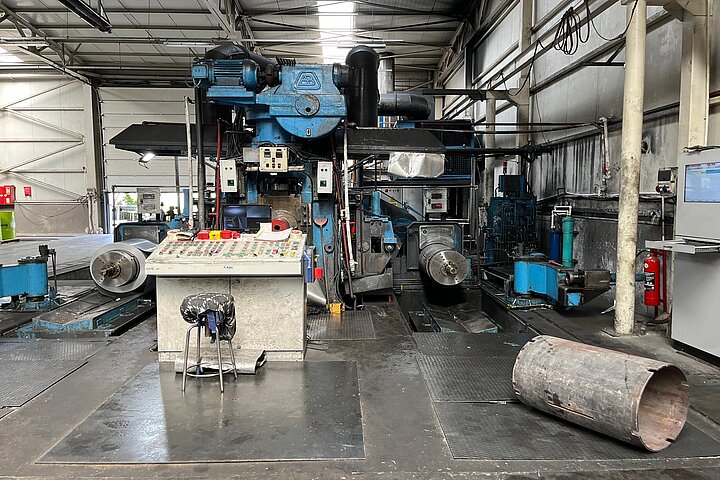

Qty. 1 Second-hand 2-Hi reversing cold rolling mill – still in operation!

Manufacturer: ACHENBACH

Built: 1958

Moved to present location and revamped in 2021.

All electrical cabinet with necessary component renewed in 2021.

There is no PLC system. The machine is controlled by Relay Control System.

All bearings and some mechanical parts have been replaced.

Status: Still in operation

Material: Alu - Alloy 1XXX, 3XXX, 8XXX

Strip Width: max. 750 mm

Thickness: 0.1 mm ≈ 5.5 mm

Main Motor: 380 kW, AC controlled by resistive cascade system

Rolling Speed: 100 m/min

Coil Weight: max. 2000 kg

Coiler and decoiler: They are driven with Main Motor.

Reversing is controlled with pneumatic valves.

Coiler has hydraulic expansion system.

Roll Sizes: dia. 460 mm x 810 mm (roll length)

Spare Parts: 4 rolls (2 are new, 2 are still in use) all of them with chocks

There are 88 pieces of Steel Core with ID 505 mm x OD 525 mm x 810 mm (width)

Scope of supply:

Rolling Mill 2-Hi, Filtration system, Chiller – Lubrication, Chiller – Hydraulic, Thickness Control, Tempering furnace
