Ref. No.:WIREBLOCK140301
YEAR:1993
Brand:MOELLER & NEUMANN (M&N)
Qty:1 Second-hand wire rod block
Qty. 1 Second-hand wire rod block
Mfc.: Moeller & Neumann (M&N) Type: MIT 6 WE Built: 1993
Material: Alloy steels, Carbon steel and stainless steel

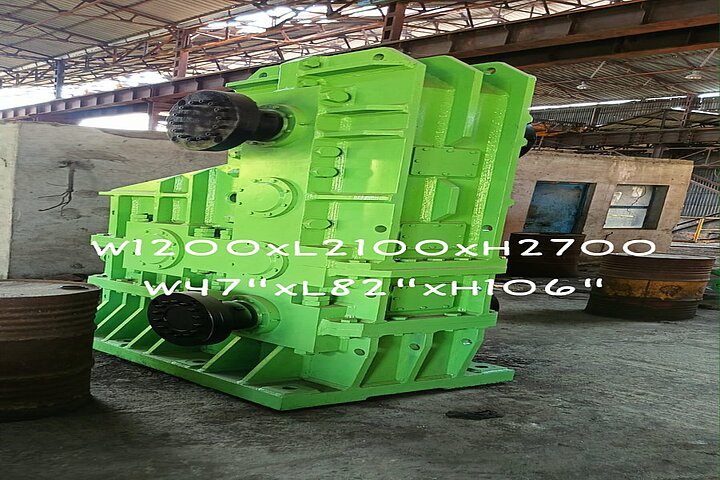

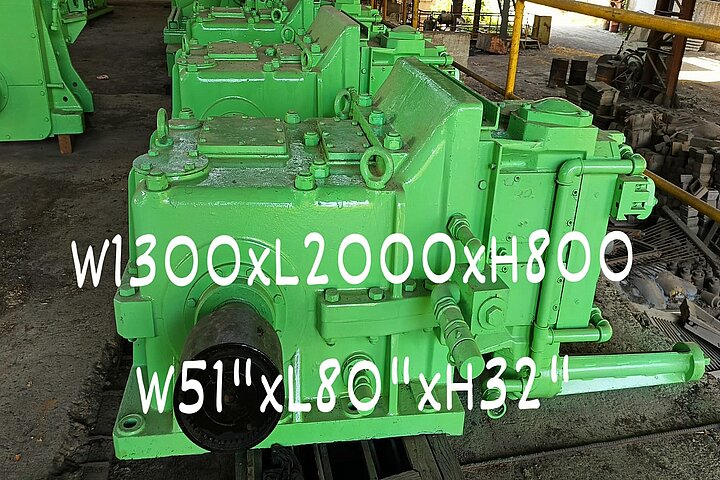

The block has an advantage that as each unit is equipped with a bevel wheel and a spur wheel
step the ratio for all the stands is 0.95:1 and the longitudinal speed can be kept low.
Advantage over other blocks is:
- Only one pair of bevel wheels are needed as reserve for the whole block
- Small bevel wheel diameters and hence small circumferential speeds
- Smooth run and a long lifetime of the bevel gears.
Production capacity of the block is 50 tph for 12 & 10 & 8 & 6.5 mm rod and 36.5 tph for 5.5 mm.
Scope of supply: Moeller Neuman 6 stand as specified above! Spare stand
Laying head Used Morgan shear to cut only 18 sq at speed of 18 m/sec.
Technical Data
Moeller and Neumann 6 Stand H-V Heavy Duty Wire Rod Block (Brand New)

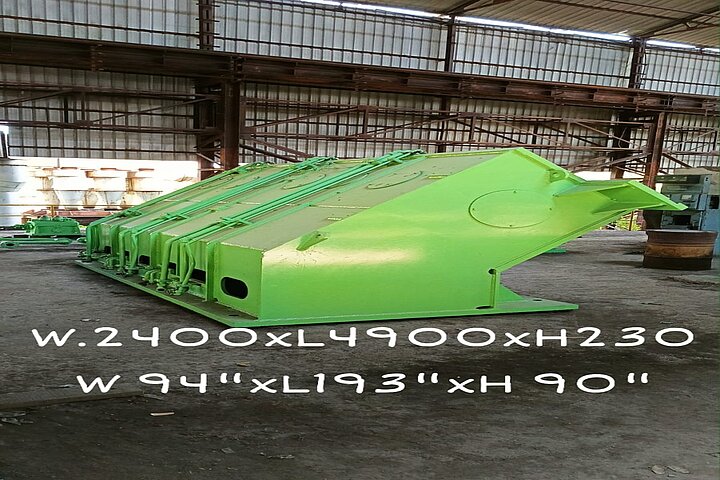

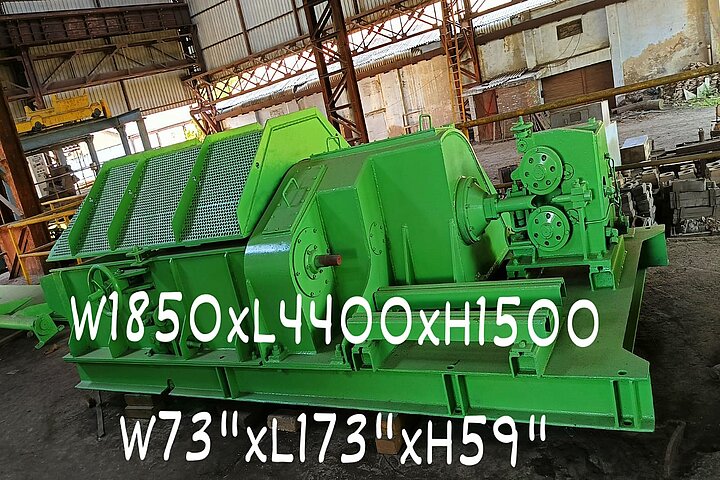

1. The Moeller and Neumann Wire Rod Block is a new 6 stand No Twist V configuration wire
rod finishing block with 3 upper and 3 lower units in a V shape configuration for no twist
2. It is designed to use 170 mm dia disks to produce 5.5 mm to 12 mm dia Wire Rods of Alloy Steels, Stainless Steels, as well as Carbon Steels.
3. With Extra Spare Stand Block Head
4. The Block has a Finishing Speed of 60 m/s

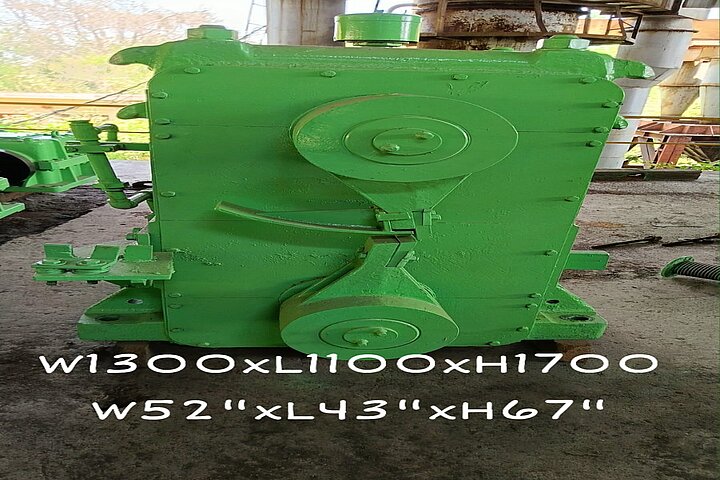

5. One Moeller and Neumann Laying Head with one Pinch Roll for above Wire Rod Block. (Without electricals)
6. One Flying Shear Morgan, USA (used) but in very good condition for cutting hot bar of 17.5 mm square before entry to block at 18 m/s. (Without electricals.)
7. The Block is a Mercedes of German block mills and designed to roll, Carbon Steels,
Alloy Steels and Stainless Steels.
8. The Block has an advantage that as each unit is equipped with a bevel wheel and a spur wheel step, the ratio for all the stands is 0.95:1 and the longitudinal speed can be kept low.
9. Advantage over other blocks is:
• Only one pair of bevel wheels are needed as reserve for the whole block
• Small bevel wheel diameters and hence small circumferential speeds
• Smooth run and a long lifetime of the bevel gears.
10. Production capacity of the Block is 50 MT/hr for 12/10/8/6.5 mm rod and 36.5 MT/hr for
5.5 mm dia wire rods.
11. The Wire Rod Block is a never used brand new block (manufactured in Germany).
12. Designed for 5.5, 6.0, 6.5 ,7, 8, 8.5, 9, 10, 10.5, 11, 12 mm rods of alloy steels/stainless
steels as well as carbon steel.
Without Electricals, Lubrications System or Carbide Rings.
Entry size 10.1 round @ 18 m/s for 5.5 mm @ 60 m/s
Entry size 12.1 round @ 18 m/s for 8 mm @ 41 m/s
Entry size 14.9 round @ 12 m/s for 12 mm @ 18 m/s
Reduction ratios: Stainless steel: 17% / 20% Carbon steel: 23% / 23%
Note: There is No missing part in the block. The block has never been reconditioned as was new and filled with antirust lubrication oil by the manufacturer. We do not think it needs any overhauling.
No electricals are included with the 6 stand Block offer.
2 x 1000 kW motors & operator panels will be required
You will require to buy the Drives, including automation separately from outside.
You will require to buy the Instrumentation separately from outside.
Packing & Seaworthy crating/ stuffing into containers is 3% extra, at our factory site, India.
Shipping, Inland freight, forwarding, export clearance, are extra at your cost.
We assume goods are being exported, else local Excise duty & sales Tax will be applicable extra on the total price.
This does not include consumable items like
- Carbide Tungsten Rings (size: 170 x 105 x 65 mm) 1 set is of 12 pieces.
- Roller Guides 3. Dressing/ Grinding wheels
Also does not include extra items such as:
Hydraulic Power Pack for cover Air Blow off assembly at entry & exit
Cobble box after Block Tungsten Carbide Ring Grinding machine
Optical Guide setting instrument/ device Lifting Tackle for Roll unit
Mist Lubrication system for Guides Fixture for Laying Head Guides
Lubrication System
