Qty. 1 Second-hand steel strip slitter

Mfc.: Dai Hyun, Built: 1994

Material to Slit: Hot & cold rolled steel coil, Hot deep galvanized steel, Carbon steel

Line Direction: left to right

Strip Width: 1400 mm, Thickness: 0.8 - 6.0 mm

Max. Coil weight: 24 MT

Un-coiler ID with Liner: Ø 480 mm, Ø 600 mm

Coil Dia.: Ø 1000 & Ø 2000 mm, Re-coiler Inside Dia.:  Ø 500 mm, Ø 760 mm

Slitting Speed: 50-100 m/min, Edging width:  3 mm to 10 mm

Electric Power: Input voltage:  400 V, 50 Hz  - 220 VAC, 50 Hz,3 Ph. ± l 0% for drive

Control Voltage: 110 VAC, 50 Hz, 1 Ph.

Slitting capacity

Working speed and No. of cuts         Min. slit width is 40 mm at thickness 1.0 – 2.5 mm.

Strip thickness           No. of cuts      No. of strips    Line speed

mm                                                                            m/min

1.0 - 1.9                      16                    15                    70-90

2.0 - 2.9                      14                    13                    70-80

3.0 – 4.0                     12                    11                    60-70

4.1 – 5.0                     7                      6                      60-70

5.0 – 6.3                     5                      4                      50-60

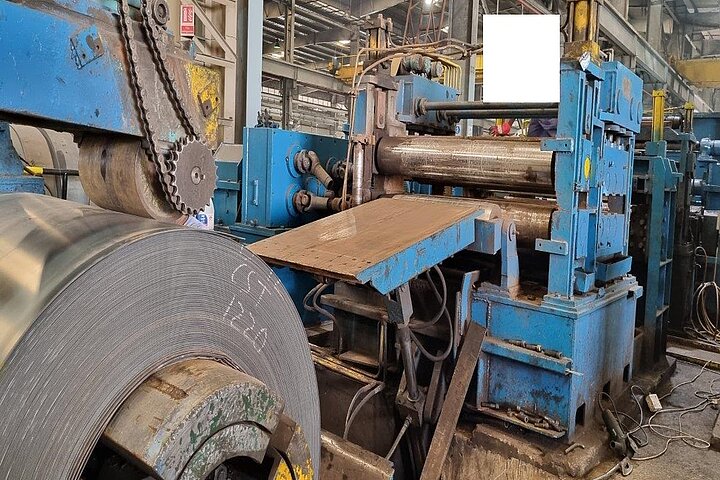

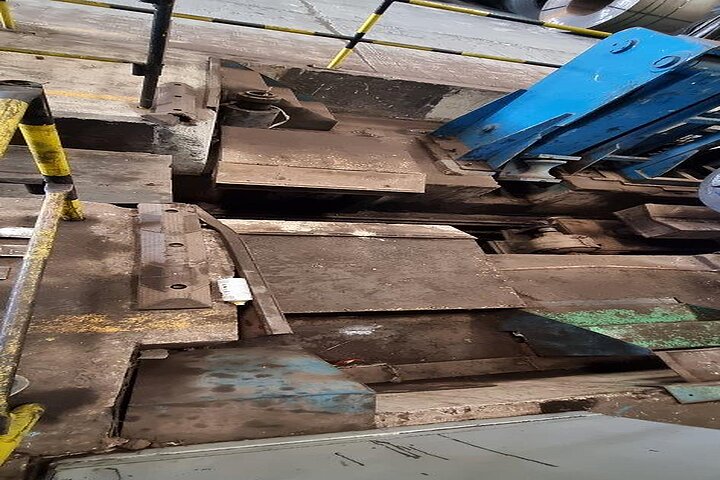

Consist of:      Coil Car In      De-coiler         Opener & Press - Down Roll

            Three Rolls with Pinch Roll & Hydraulic Shear        Roller Table

Pinch Rolls & Side Guide      Slitter 2 no’s               Scrap Winder 2no’s

Loop Table     Tension Pad               Leveler            Tension Roll

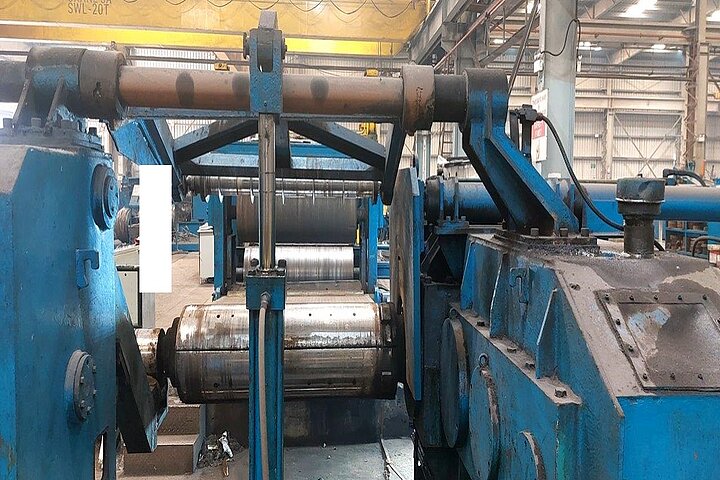

Separator 2no’s          Re-coiler         Coil Car Out               Pusher Plate
