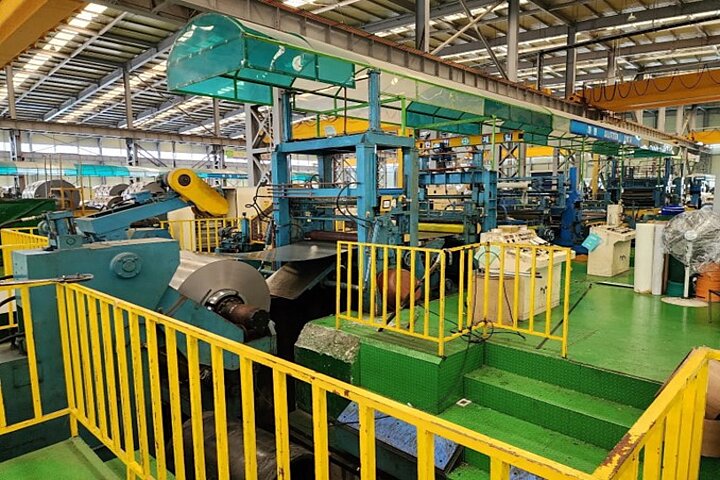

Qty. 1 Second-hand slitting line

Mfc.: Honda, Built: 1987, Overhauled electrical part: 2006

Material: CR, HR COIL, Tensile Strength: Max. 60 kg/mm2

Yield Strength Max.: 36 kg/mm2, Coil Weight: Max. 20,000 kg

Line Speed: Max. 150/80 m/min, Threading Speed: Max. 20m/min

Strip Width: 400 - 1,300 (1,380) mm, Strip Thickness: 0.2 - 3.2 mm

Slitting Width: 11 – 650 mm, Slitting Number: 30 Cuts x 29 Strips

Coil ID: 508 mm (610 mm = Rubber Sleeve), OD: 800 - 2,000 mm

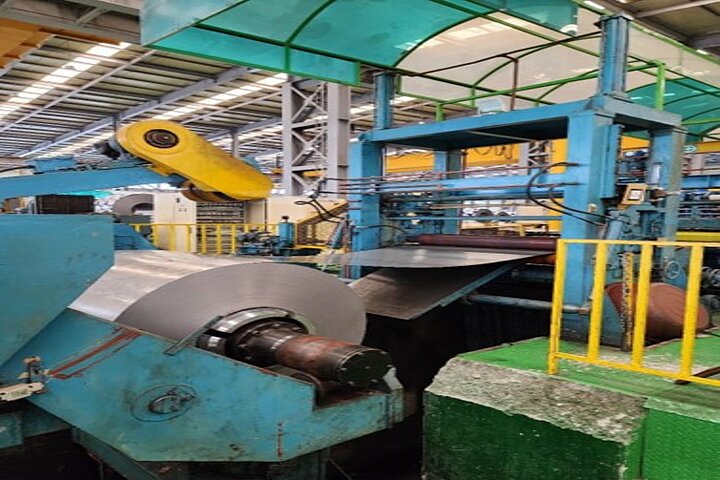

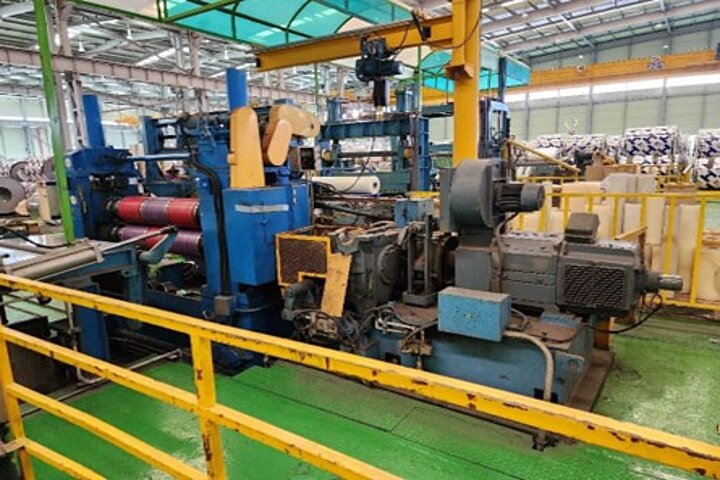

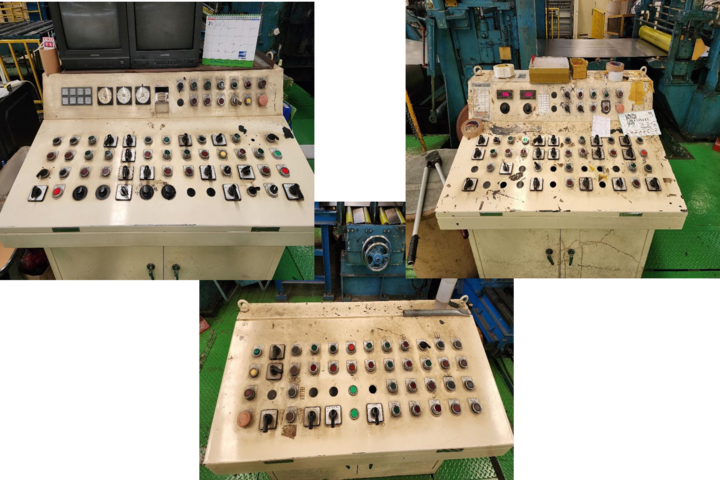

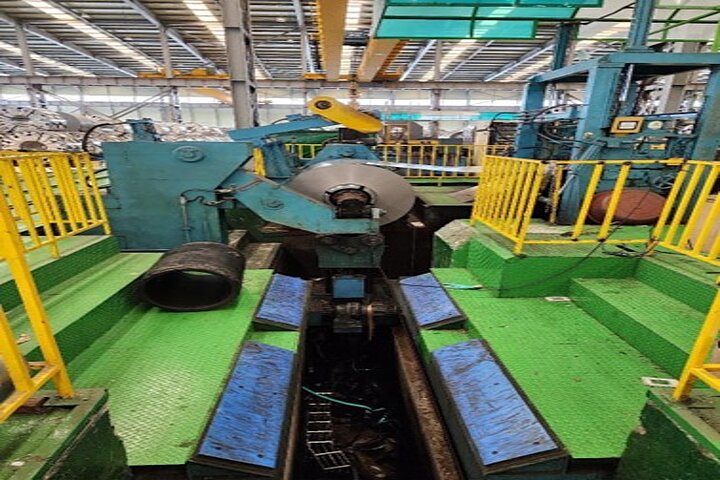

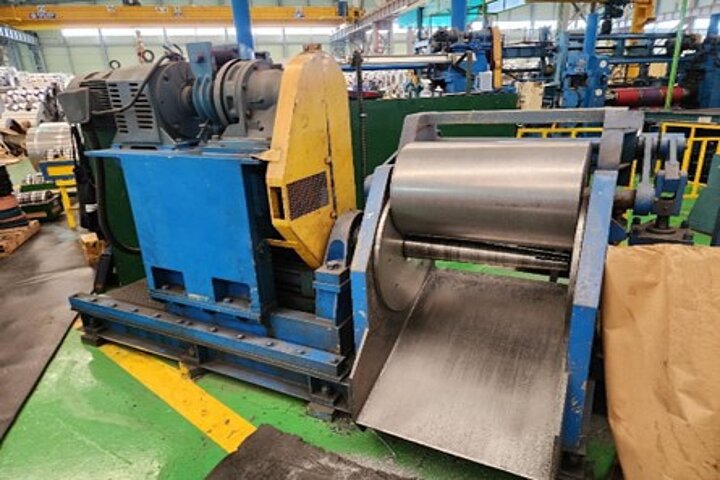

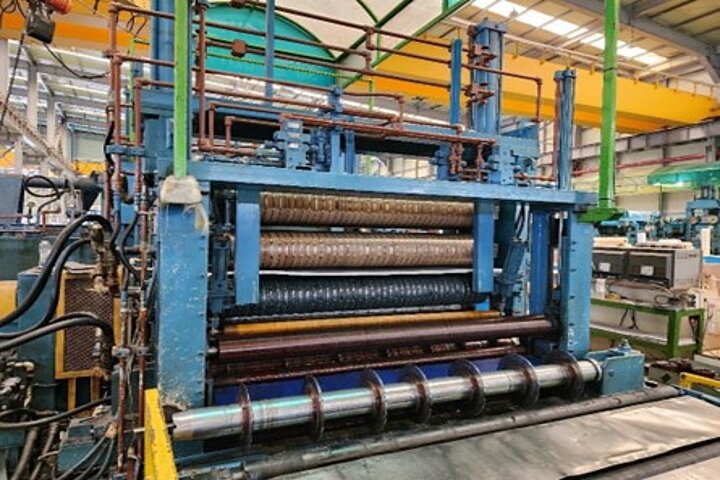

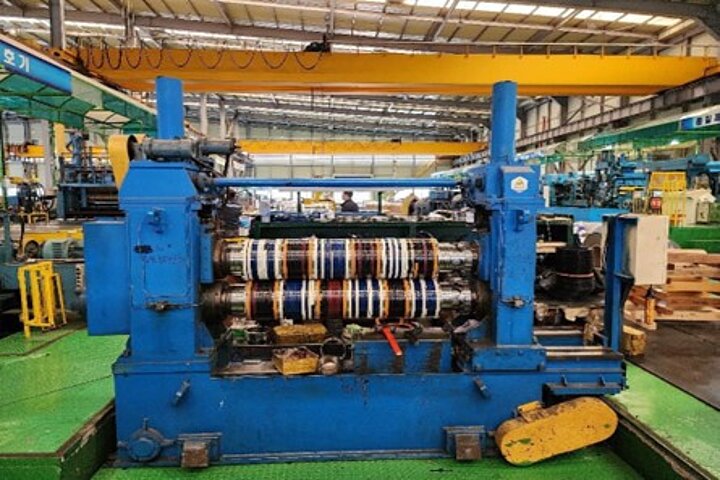

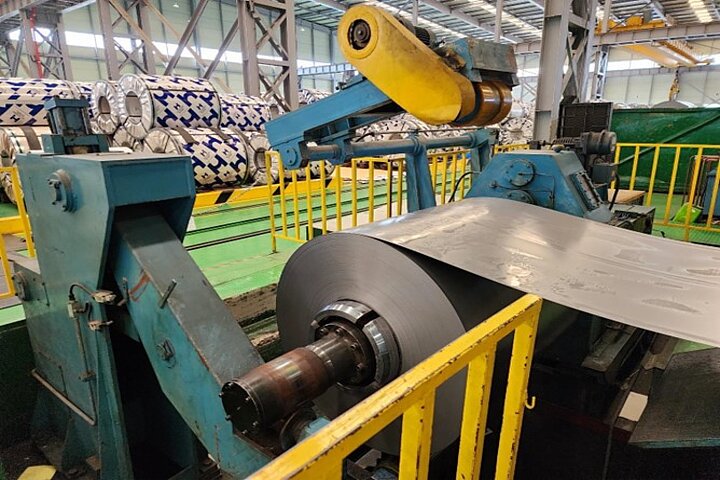

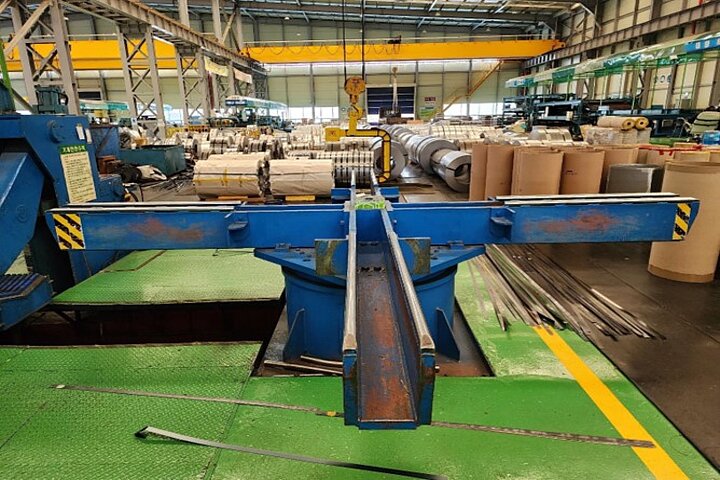

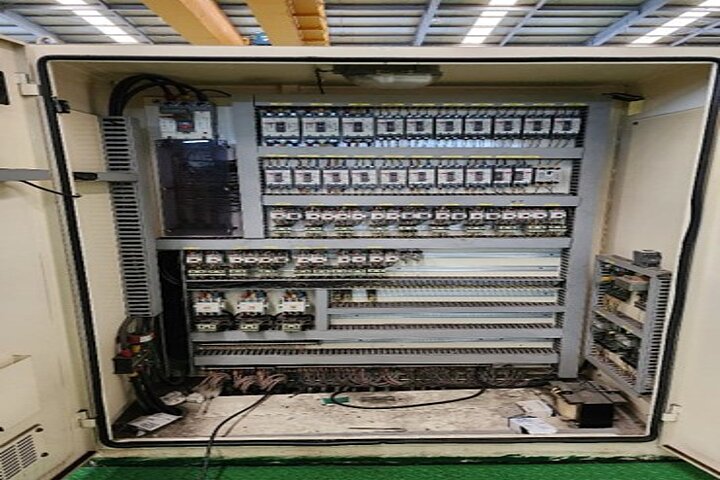

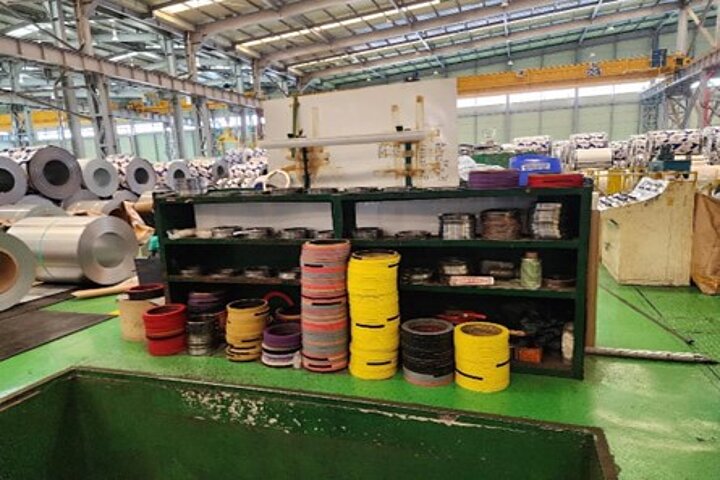

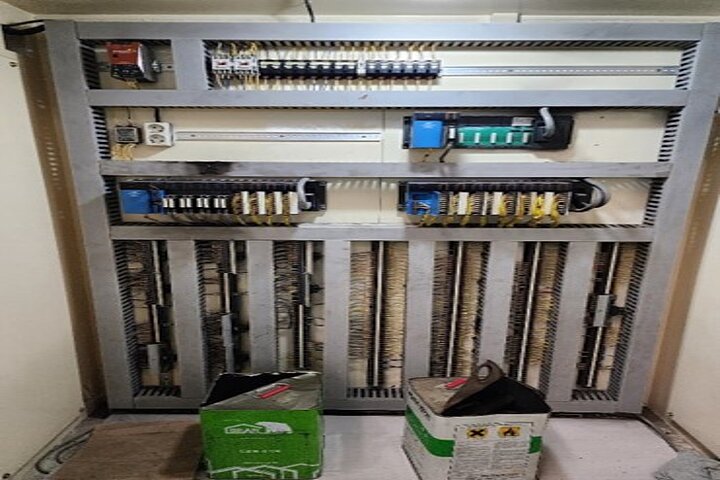

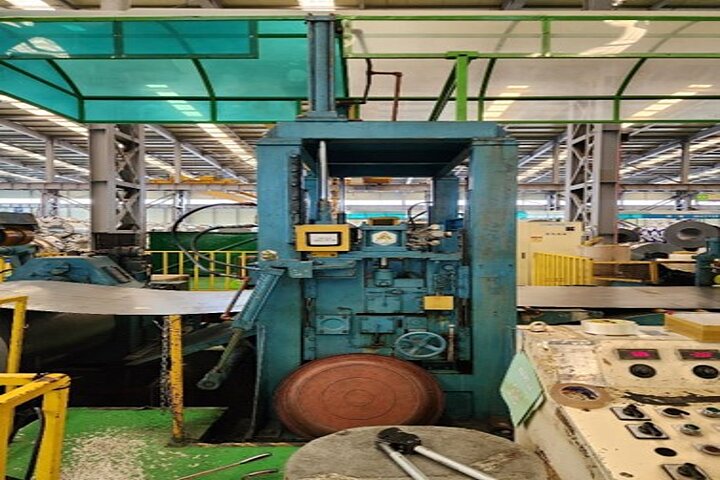

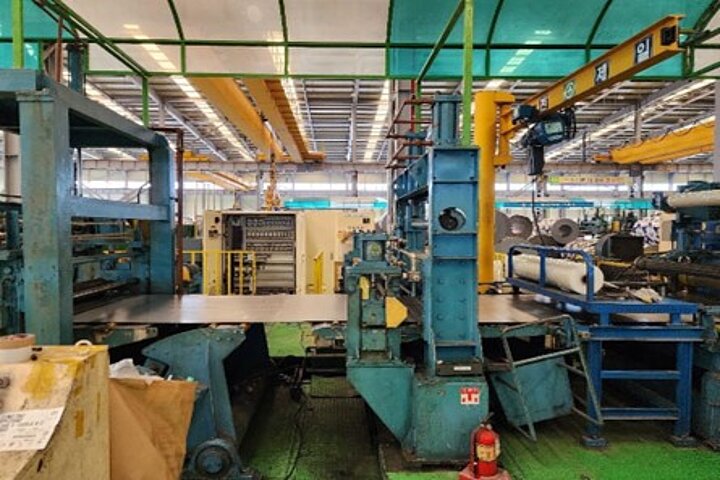

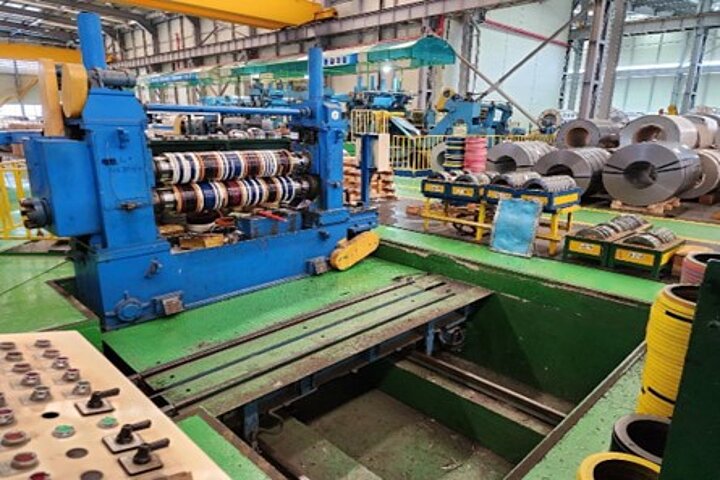

Scope of supply: Uncoiler Coil Car With Coil Skid, Uncoiler With Snubber Roll, Uncoiler Drum Support, Coil Opener, Three (3) Bending Roll, No.1 Pinch Roll, Crop Shear With Scrap Box & Guide Table, Side Guide with Vinyl Coater, Slitter Stand, Spare Slitter Stand with Changing Car, Scrap Winder with Scrap Conveyor, Threading Table With End Pad, Scrap Baler, Loop Table, Belt Bridle (Omega Type) with Separator, No.2 Pinch Roll & Bridle Roll with Dividing Shear, Recoiler With Coil Pusher & Separator, Recoiler Drum Support, Recoiler Coil Car, Four (4) Arm Turnstile, Hydraulic Equipment, Pneumatic Equipment, Slitting Tool, Electric Equipment

Technical Data

Slitting System: Pull & Drive Cutting by DC Power Control

Standard of Threading: Line Center, Pass Line Height: FL + 900 mm

Line Threading Direction: From Left To Right (View of the Operation Side)

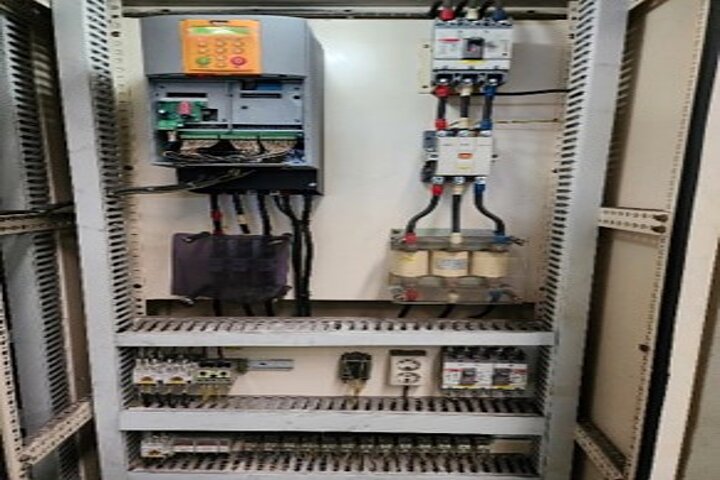

Main Voltage: 220 V, 3 ph., 60 Hz, Control Voltage: AC 110 V, 60 Hz, 1 ph.

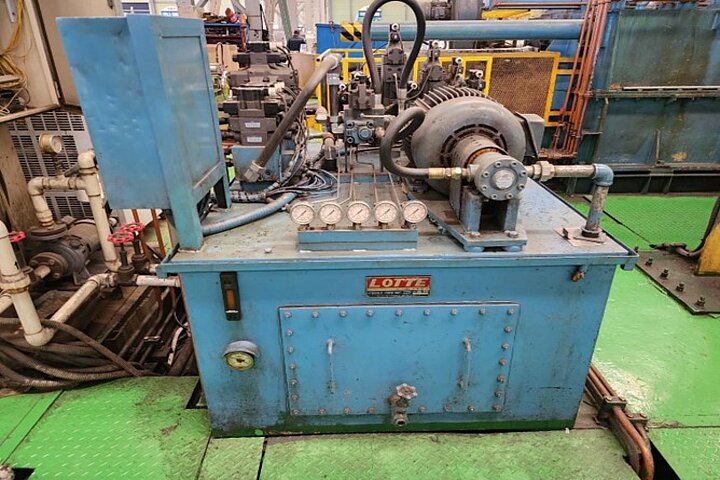

Hydraulic Pressure: Normal 70 kg/cm2, Max. 100 kg/cm2

Pneumatic Pressure: Normal 5 kg/cm2, Max. 7 kg/cm2
