Qty. 1 Second-hand (PUR/PIR) sandwich panel

Mfc.:    PIR/PUR Firing System & Profiling Press Line – Siempelkamp GmbH, BASF

Terminal System – IL Kwang Metal             Built:    2005                Modernisation: 2016

Type for sandwich panel:       Outer side – Color coated steel strip

                                               Inner side – Hard Polyurethane / Polyisocyanate

Use for:           Construction Panel for Wall & Roof

Product size:   14.0 m x 1.22 m – L x W        Thickness:      50 mm, 75 mm & 100 mm

Upper & lower steel strip:      1220 x 0.45 – 0.75 mm – W x T        Coil weight:  10 T

Production speed:      4.0 – 12 m/min           Voltage:          380 V, 3 ph., 60 Hz,

Capacity:         max. 900 000 m²/annum -   300 days – 1 shift / day

Product temp.:                        60 °C (forming belt side)        20 °C (head nozzle)

Pneumatic pressure:  5 – 6 kg/cm²               Process direction:       right to left

Length of the double belt:      25 m                Chem tanks

Thickness roof:           up to 150 mm - additional pump to increase capacity (USD 8,000.00)

Working area:             approx. 120 x 20 m

Production Process

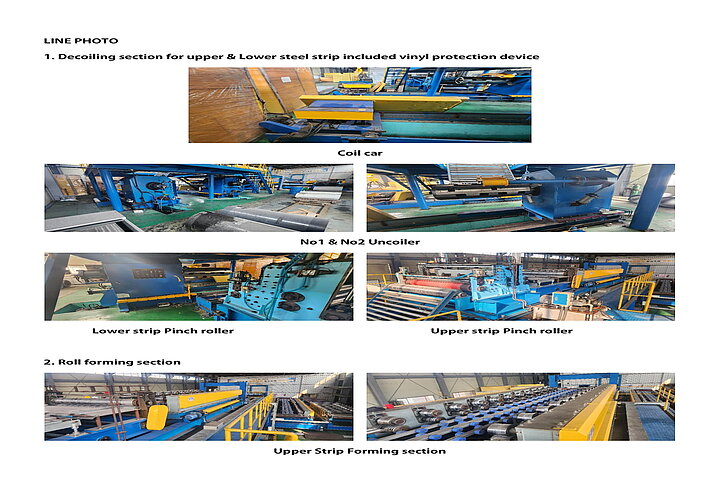

Decoiling section for upper and lower steel strip included Vinyl protection device

Roll forming section including                                               Preheating section including

PUR/PIR mixing & pumping systemincluded raw material tank

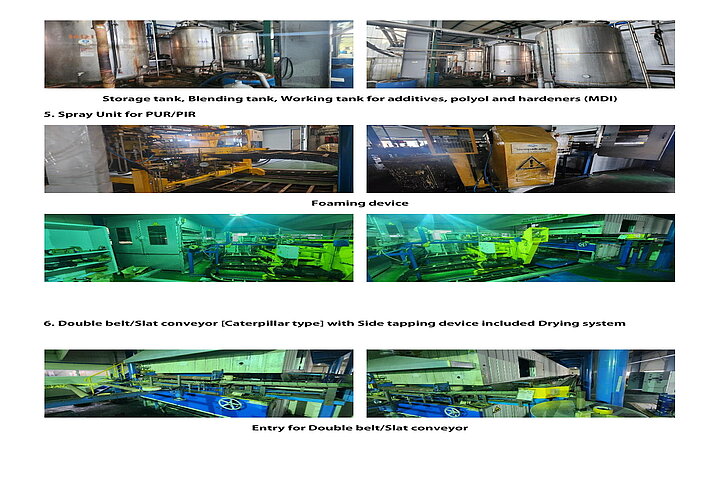

Spray unit for PUR/PIR                                             Polyols:           PIR, PUR, MDI

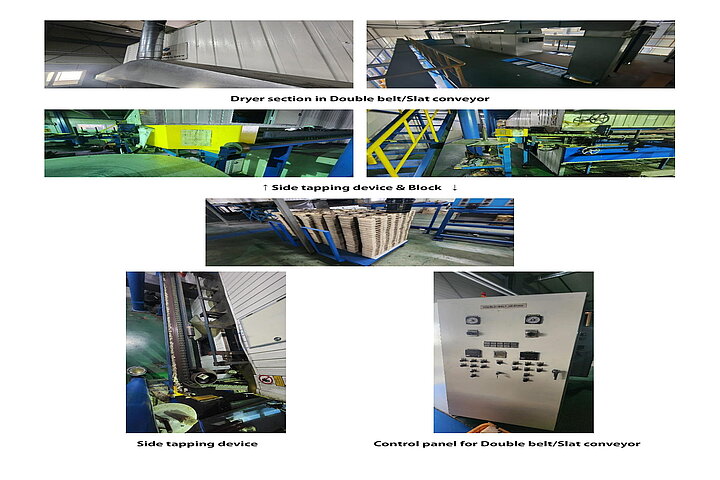

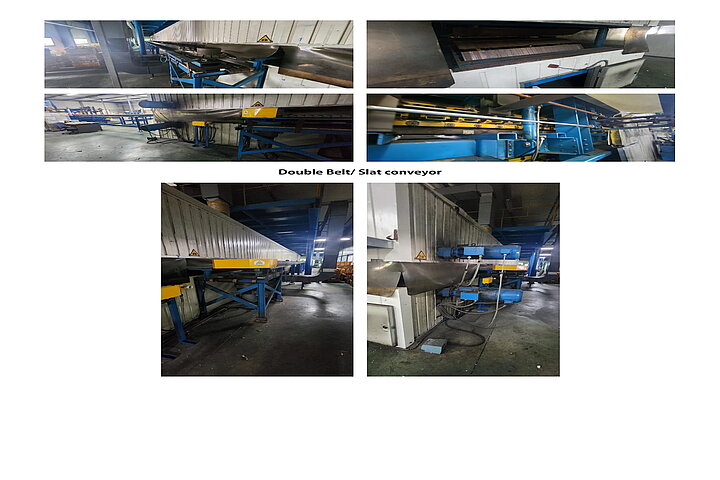

Double belt / Slat conveyor (Caterpillar type) with side tapping device incl. drying system

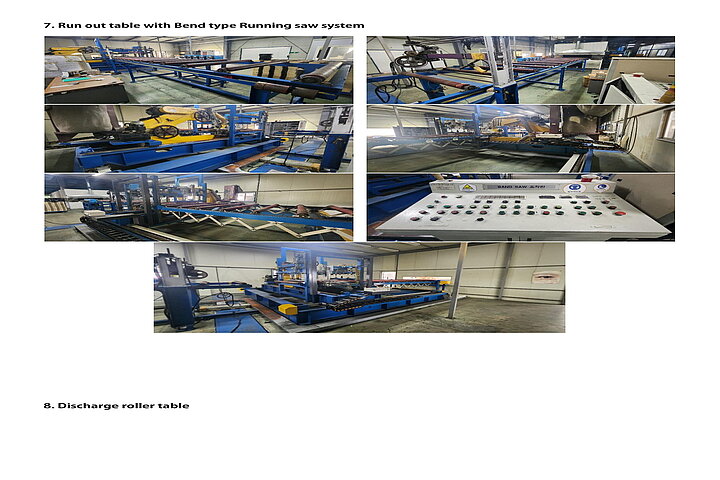

Run-out table with bend type running saw system

Discharge roller table             Saw Control                Dust extraction

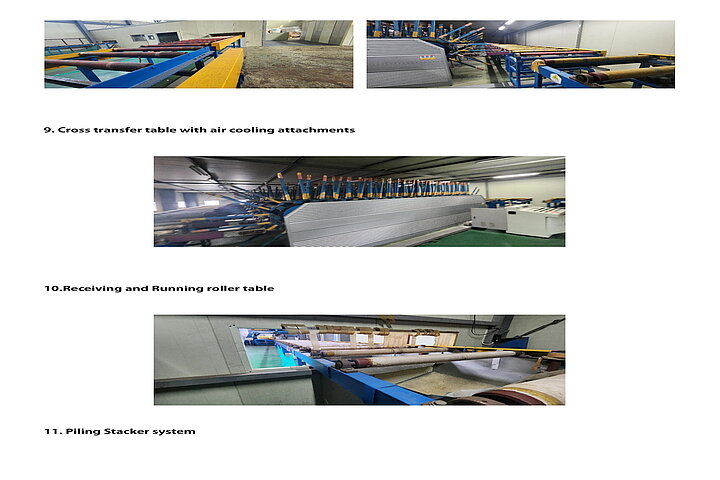

Cross transfer table with air cooling

Receiving and running roller table

Piling stacker system             Stacker                       Bundler online

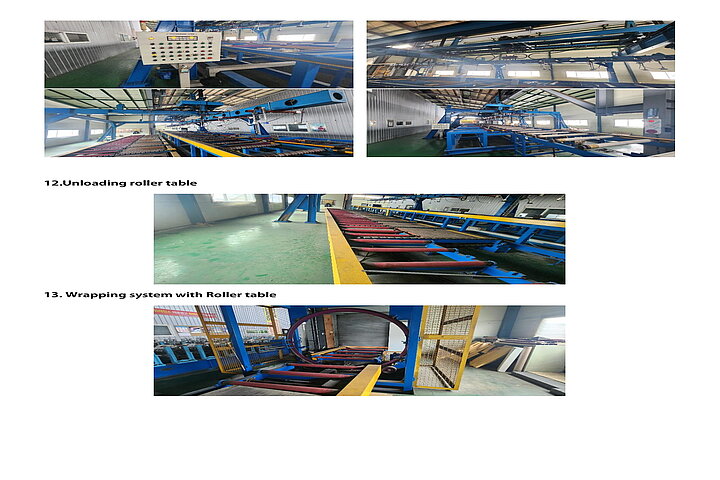

Unloading roller table

Wrapping system with roller table
