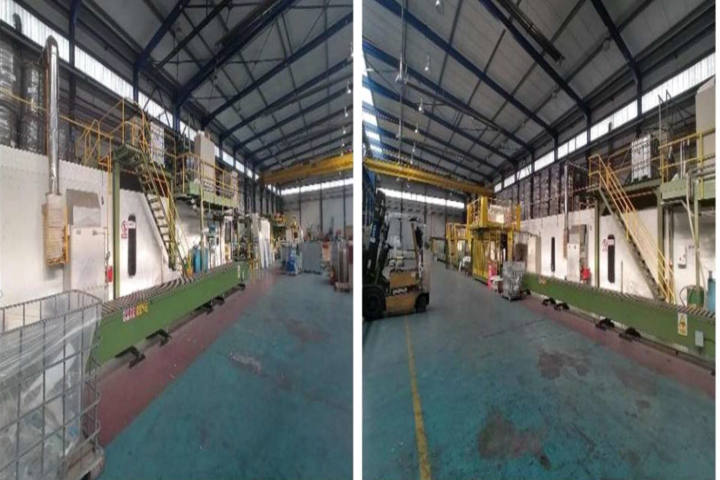

Qty. 1 Second-hand sandwich panel production line

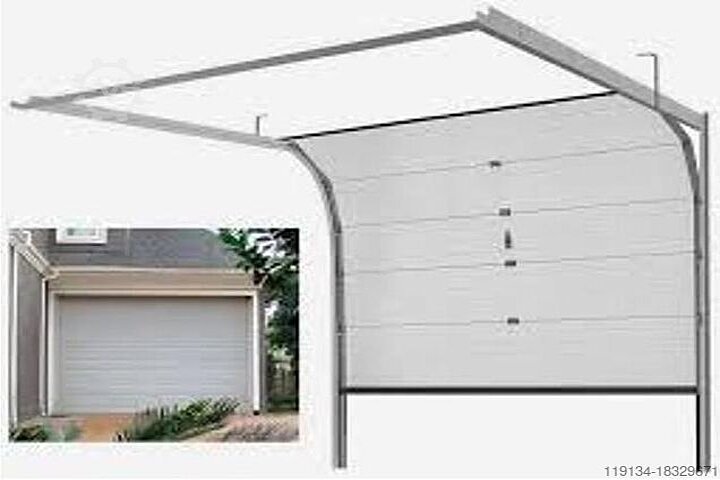

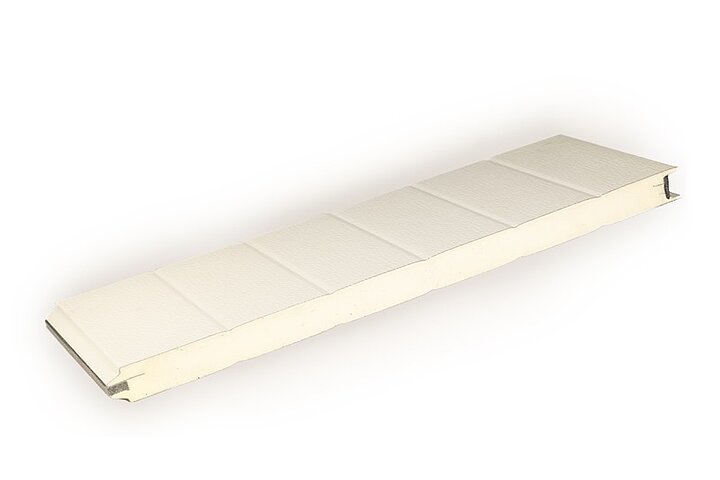

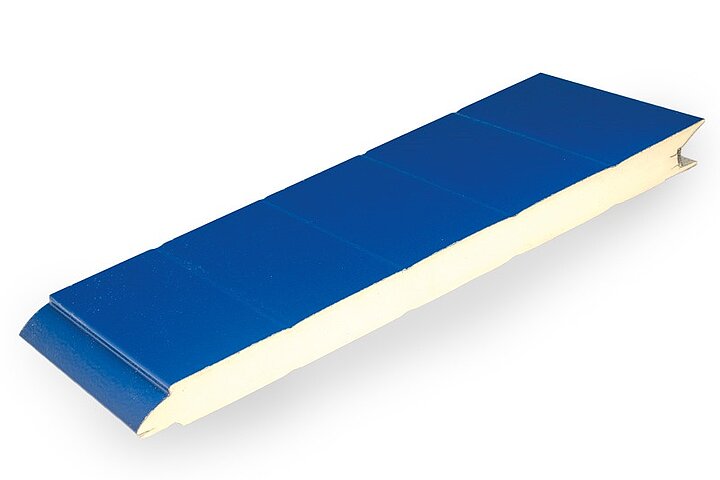

Line manufacturing of insulated metal panels for sectional doors (garage).

Mfc.: METECNO Technology SPA; FASPAR

Built: 1994, Reconditioned and commissioning at current locatio: 2006

Useful working width: 500/610 - 10 mm

Panel door thickness:  40 mm

Sheet thickness:  0.37/0.70 mm

Capacity: 1,500,000 m panels/year

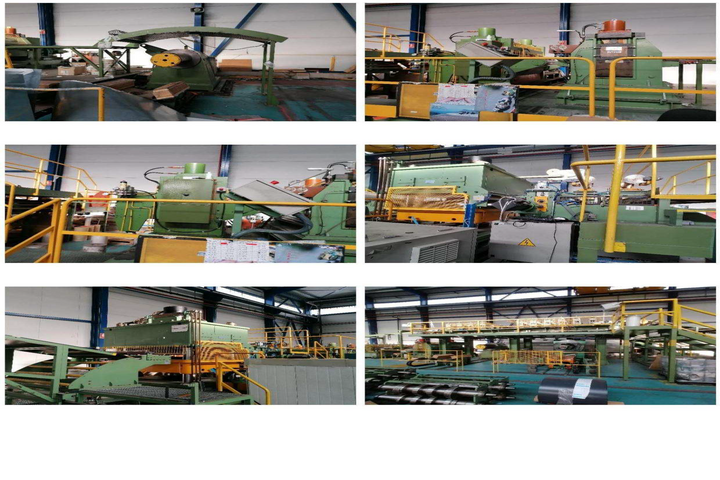

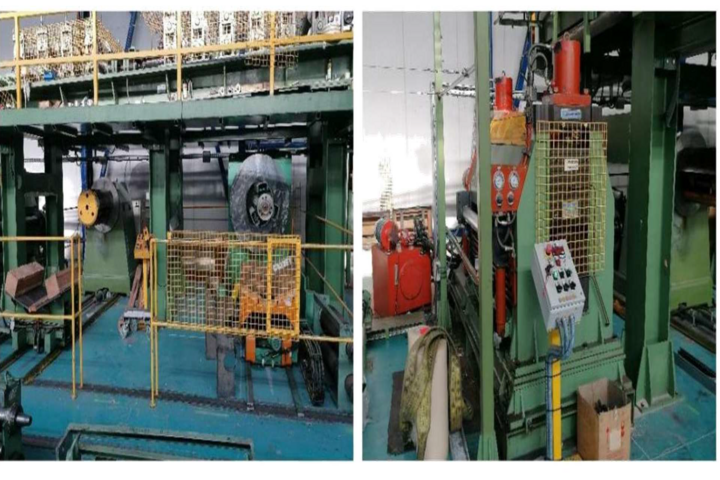

M1-1.01 Forming installation upper composed of two automatic sheet metal decoilers,

with coil loader 10,000 kg, automatic coil changing and die-cutting system sheet

M1-1.02 Embossing machine for exterior panel surface finish (finish wood)

M1-1.03 Embossing machine for exterior panel surface finishing (stucco finish)

M1-1.04 FASPAR stamping press, with holding table and passage

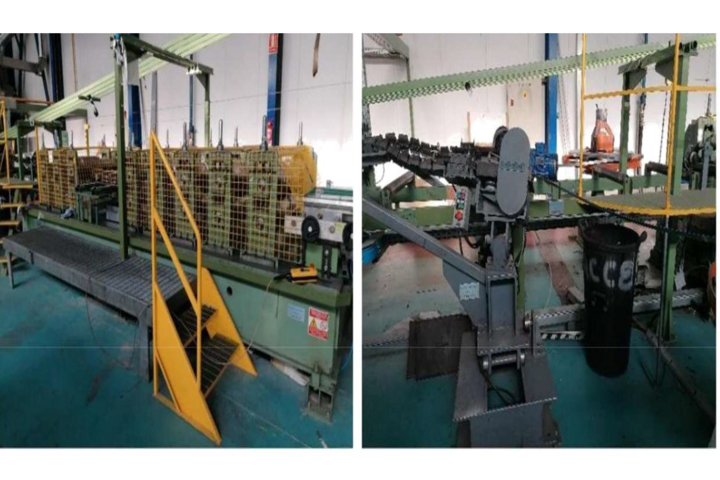

M1-1.05 Profiling machine of sheet metal with abilityfor 12 roller tandems profiling

M1-1.06 Composite lower forming installation by two automatic sheet metal uncoilers with coil

Loader 10,000 kg, automatic coil changing and die-cutting system sheet.

M1-1.07 Embossing machine for exterior panel surface finishing (stucco finish)

M1-1.08 Hair-filing machine of sheet metal with capacity for 12 roller tandems profiling

M1-1.09 Path sidler rollers for sheet metal movement

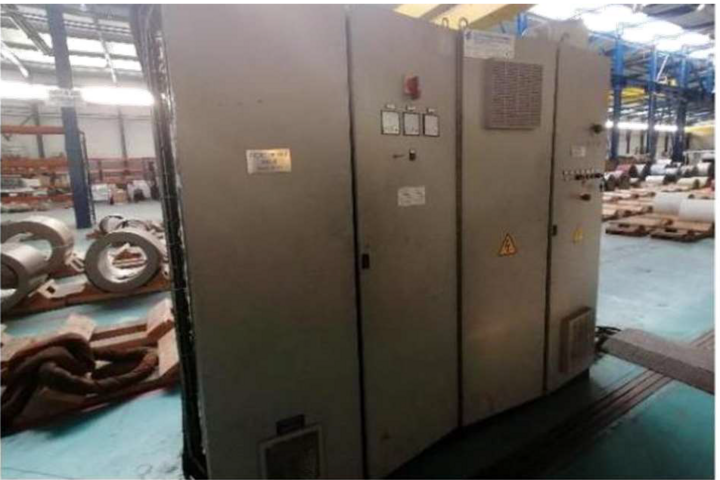

M1-1.10 Centralized control station for the profiling section Injection Section and Mix/a

M1-2.01 System for the introduction of metal reinforcements inside from the panel (two feeders

on the right and left of the panel)

M1-2.02 Preheating oven for the two plate lines at 40 °C to facilitate the fixing of the injected

insulation. Dimensions Approximate dimensions: 150x60x50 cm

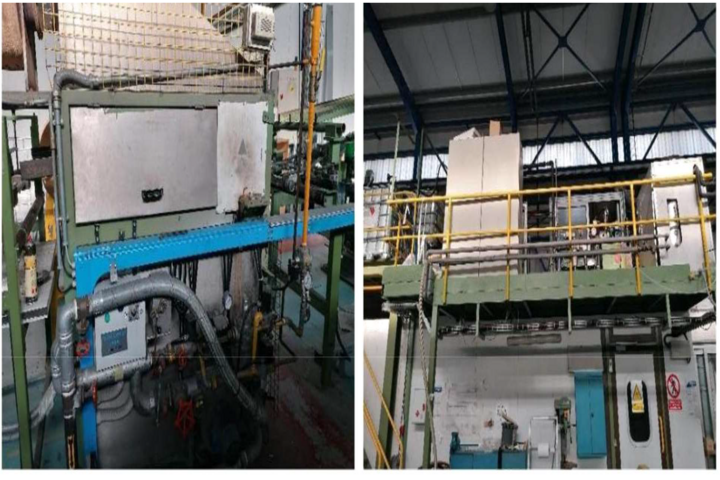

M1-2.03 Insulation dosing and application system consisting of:

1 heated tank for polyol storage, 1 heated tank for isocyanate storage,

2 tanks for storage of catalysts and minor additives, pentane regulation installation,

continuous mixer, high pressure pump and two dosing nozzles.

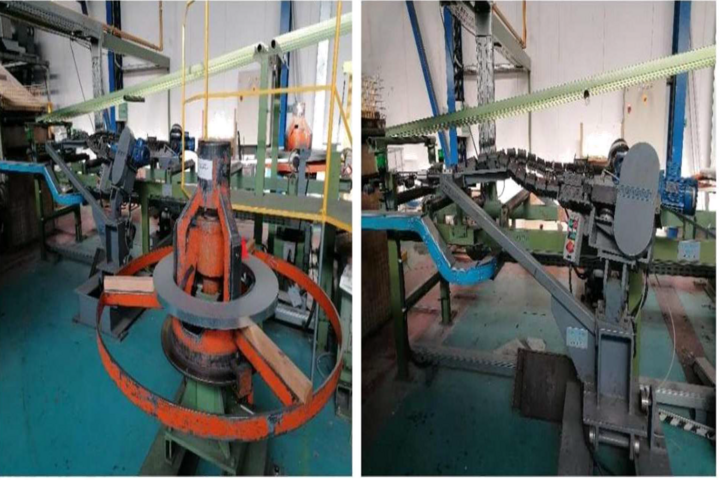

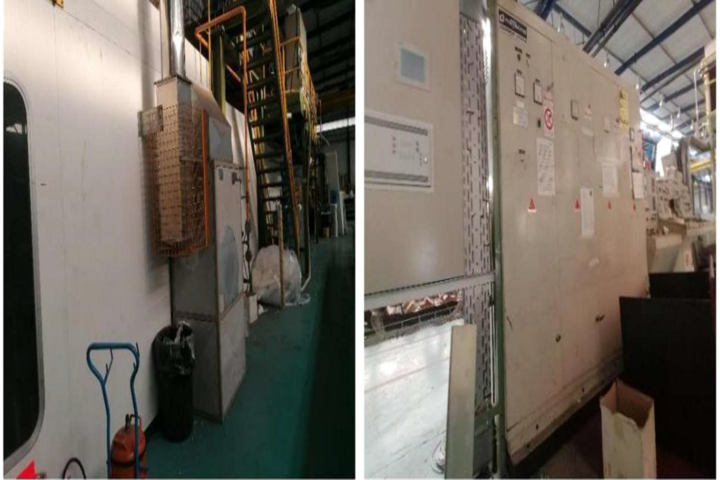

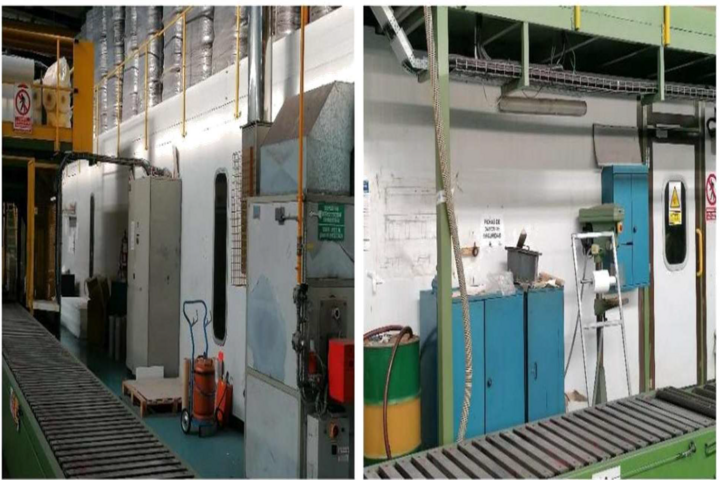

M1-2.04 Double-chain press train with hot air recirculation within a closed enclosure to protect

the installation thermally and acoustically. Saw-link table, with idle roller path

of 1500x700 mm.

M1-2.05 Hot air generator with natural gas burner located in the exterior of the press booth.

M1-2.06 Centralized control station for the injection and mixing section

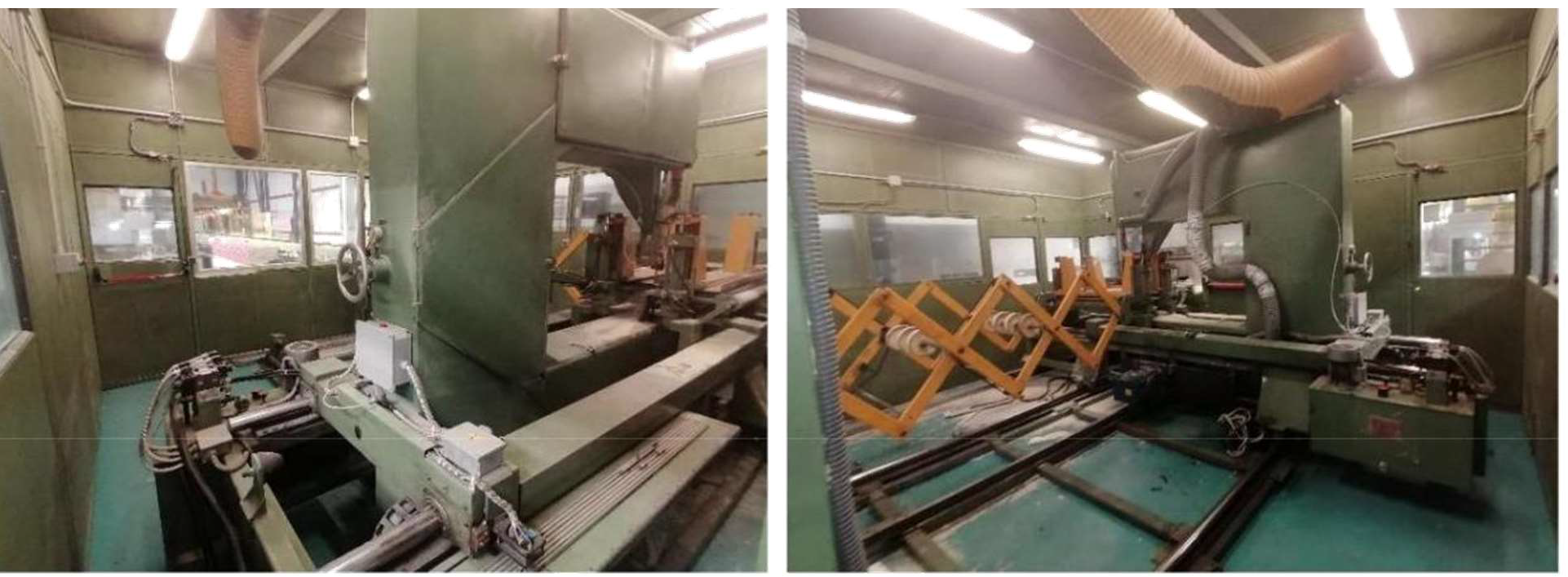

M1-3.01 Automatic circular saw with longitudinal movement for continuous panel cutting

inside a closed cabin with a chip suction system.

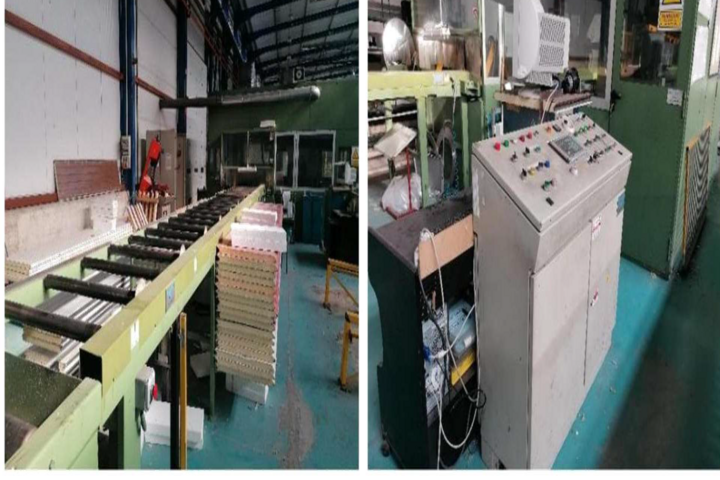

M1-3.02 Motorized roller output path for cut panels up to depalletizer, 13000x800 mm

M1-3.03 Centralized control station for panel cutting section

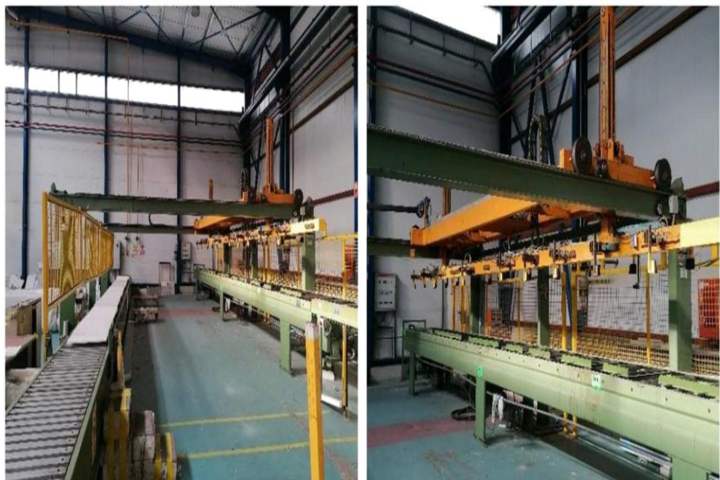

M1-4.01 Palletizing gantry Automatic panel clamp with pneumatic panel handling clamp with

claws.

M1-4.02 Automatic package preparation table, with plate conveyor metal, in three sections

of 12000x750 mm

M1-4.03 Motorized output path for panel packages on plates to the packaging plant

M1-4.04 Rotary shrink-wrapping machine for packaging of panel packages

M1-4.05 Path Motorized output on metal plates, for dispatching packages of packed panels,

26000x750 mm with final metal stop

M1-4.06 Centralized control station for unloading/stacking/packing section
