Qty. 1 Second-hand mineral wool core sandwich panel production line

Mfc.: Pflaum, Kronn, other European manufacturers                       Built: 2004, upgraded 2017

Sandwich panel: insulated with a core made of high-density mineral wool and prepainted steel facings for wall application

Space required: length = 110 m, width = 17 m

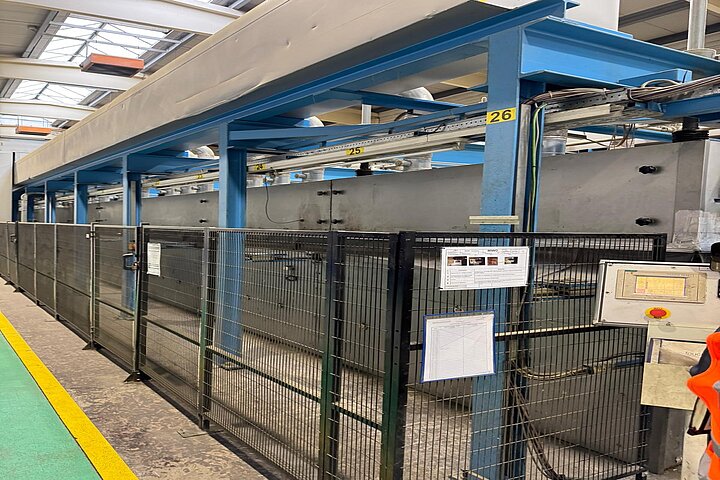

Press is gas heated up to 55°C

Power: 140 – 160 kW

Line consisting of:

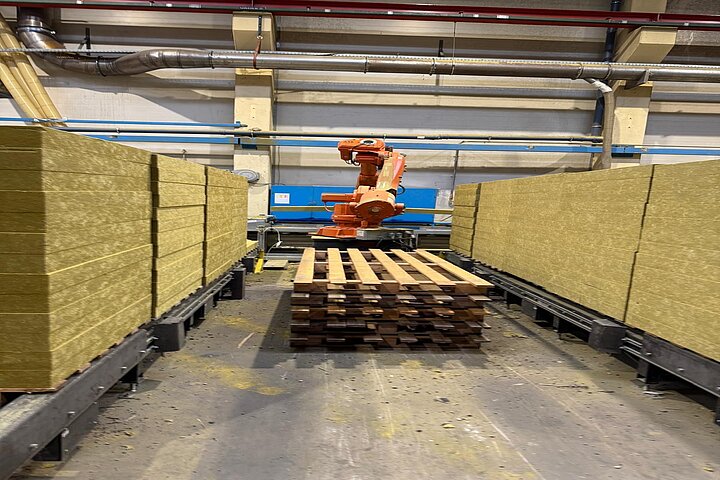

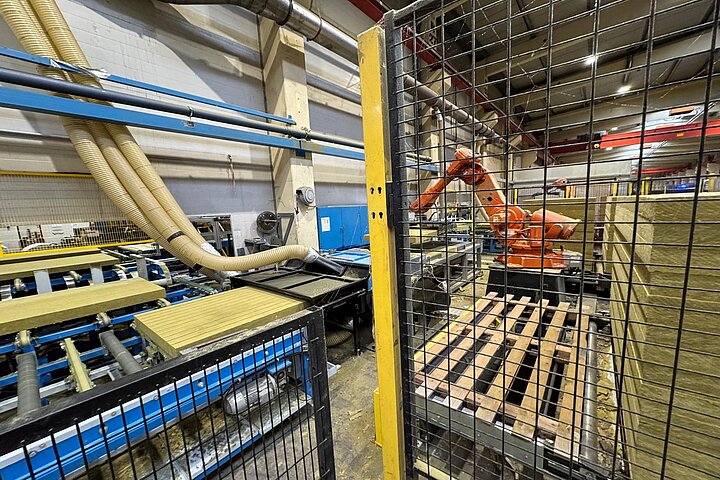

1 - Entry section of mineral wool application: Two ABB robots to feed from bundle of mineral blocks to cutting each raw material panel on conveyor

2 - Cutting section of mineral wool in lamella

3 - Decoiler + 2 extra for change over

4 – Gluing machine upper (on mineral wool) and lower side

5 - Laminator

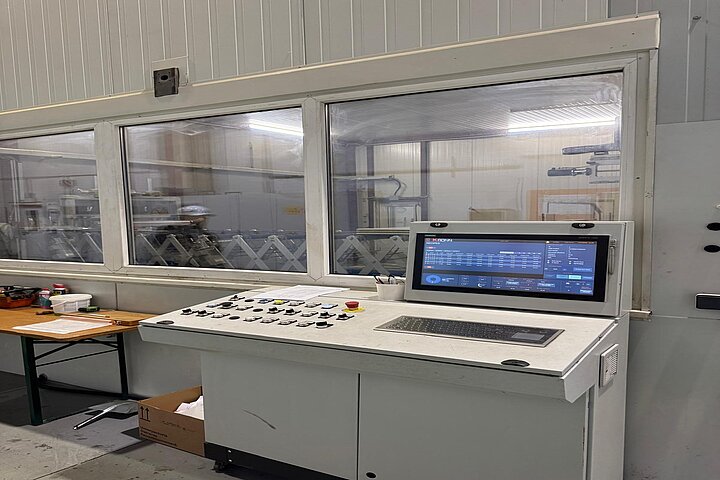

6 - Cutting saw

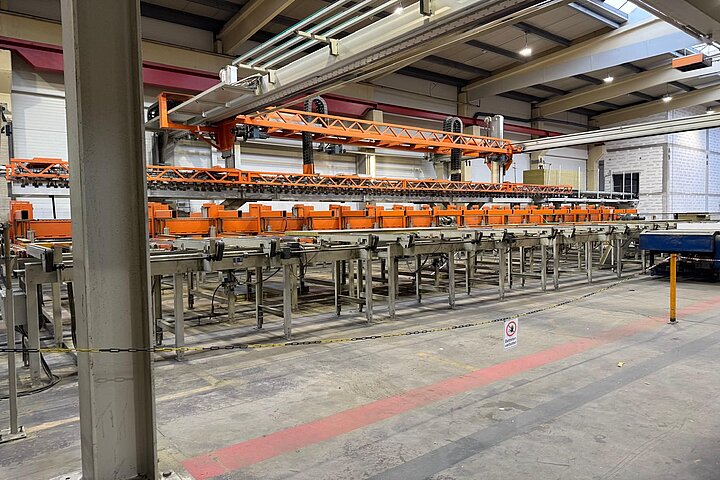

7 - Stacker

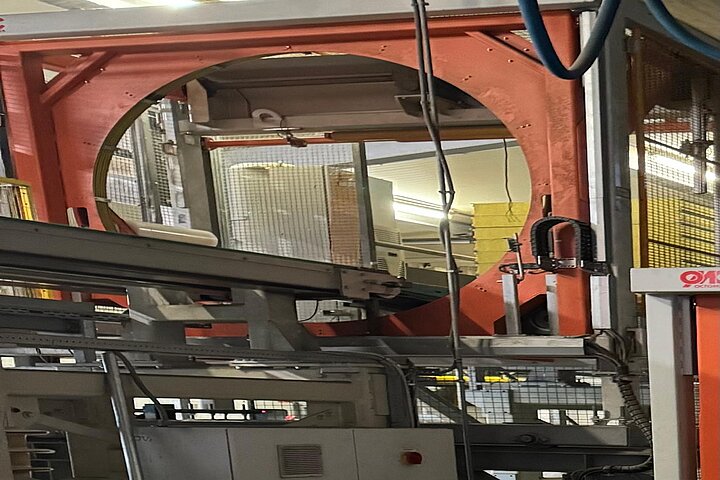

8 - Wrapping section

Specification of mineral wool core sandwich panels produced:

• Mineral fiber strands bonded across the steel surfaces, water-repellent and non-combustible
• Density: 100 kg/m³
• Width: 600, 915, 1000, 1050, 1100 and 1200 mm
• Thickness: 50/60/80/100/120/140/150/160/180/200/220/240 mm
• Profiling types (exterior / interior)

Exterior profiling types: Microprofiled / Medium profiled / VD2-profiled / 0-smooth / grooves (91.60 mm) / grooves 152.50 mm

Interior profiling types: 5 adjustable grooves / G-ribbed / 0-smooth / grooves 91.6 mm / grooves 152.50 mm / V-shape (for BBR 915 mm) / grooves 100mm

• Minimum length: 1,500 mm, Maximum length: 20,000 mm
