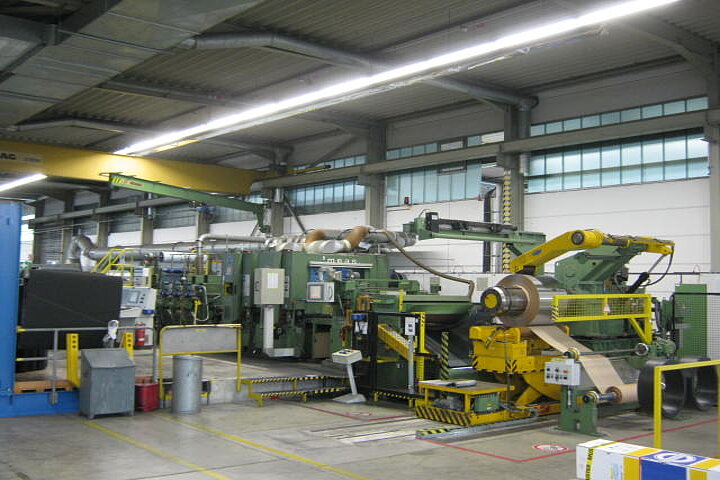

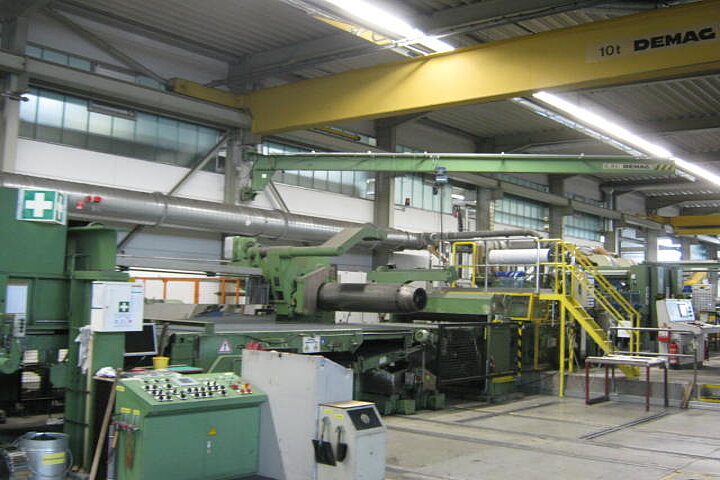

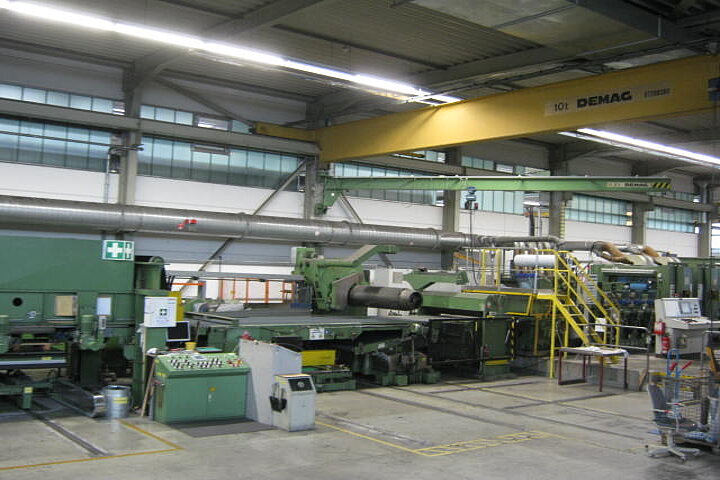

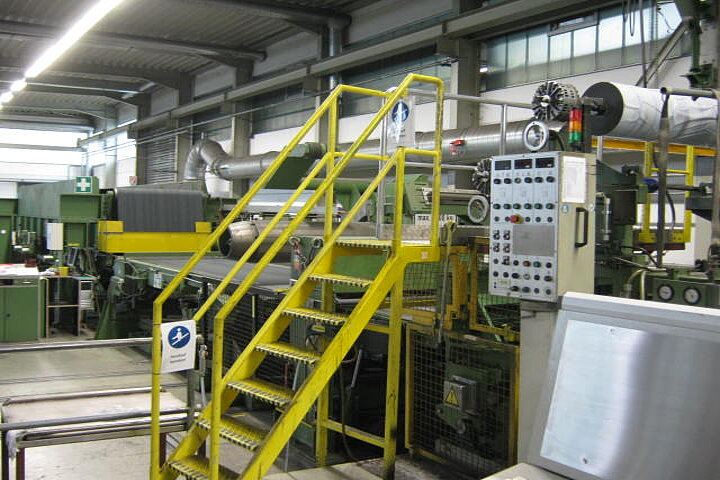

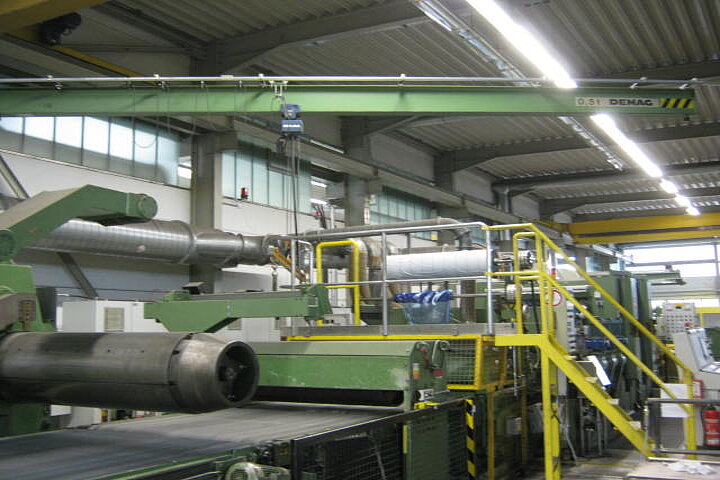

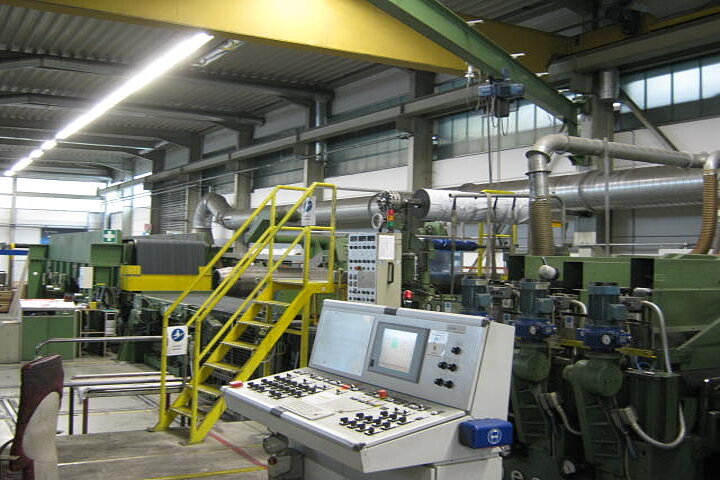

Qty. 1 Second-hand cut-to-length line including straightening, polishing and grinding units

Manufacturer: UNGERER / GEORG, EMG, IMEAS

Built: 1986 / 1997 /1998 / 2009 still in operation

Material:          stainless steel

Strip width:      500 – 1.250 mm                     Thickness:      0.40 – 1.00 mm

Coil weight – DECOILER max.:  10.0 t         RECOILER max.:       5.0 t

Coil ID – Ø 500 mm   OD – Ø 1.500 mm

Sheet length:  500 – 6.000 mm                     Stacking weight max.:                        4.000 kg

Working speed – grinding max. 20 m/min.   Working speed – grinding + brushing: 4 – 12 m/min.

Working speed – brushing: 4 – 6 m/min.      Working speed – cutting max.: 20 m/min.

Working direction right ⇒ left                        Length tolerance ± 0.40 – 3.000 mm

Length tolerance according to DIN – 6.000 mm

Line consting of:

● Paper- and foil coiling – unit manufacturer GEORG

● Coil-transfer car (over floor – movable) manufacturer GEORG   Capacity max. 9.0 to.

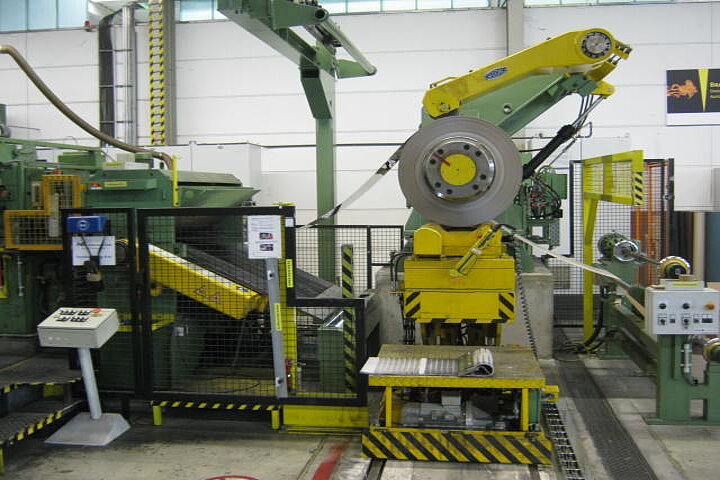

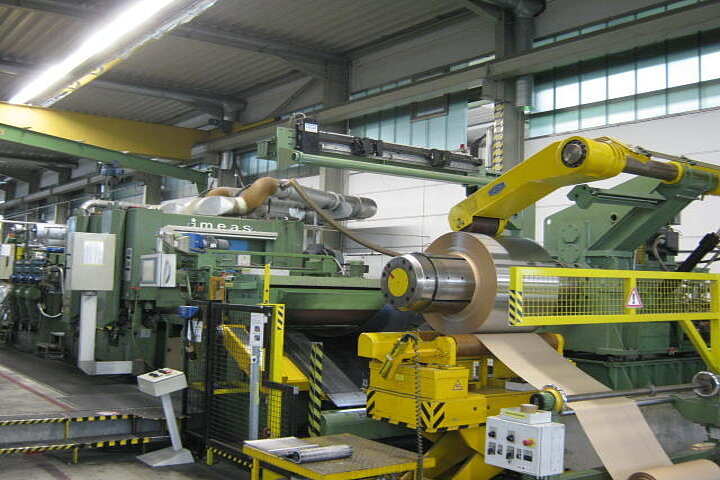

● Decoiler manufacturer GEORG                 Capacity max. 10.0 to.

Press roll / expanding process hydraulically

● Strip centering device on rack manufacturer EMG

● Coil opener- / driver-unit manufacturer GEORG

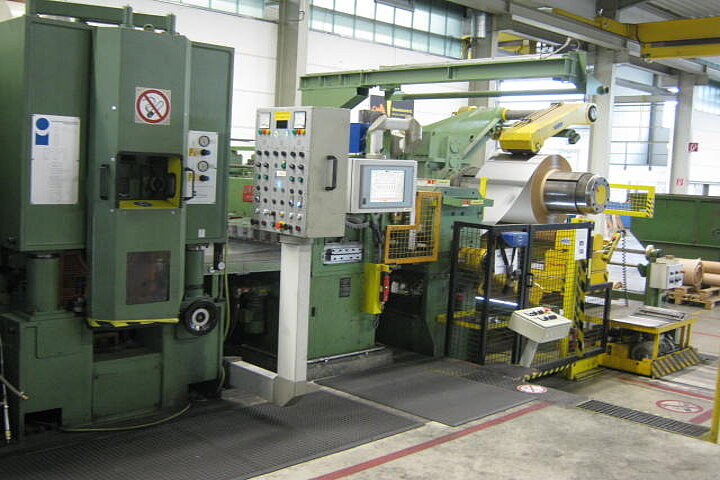

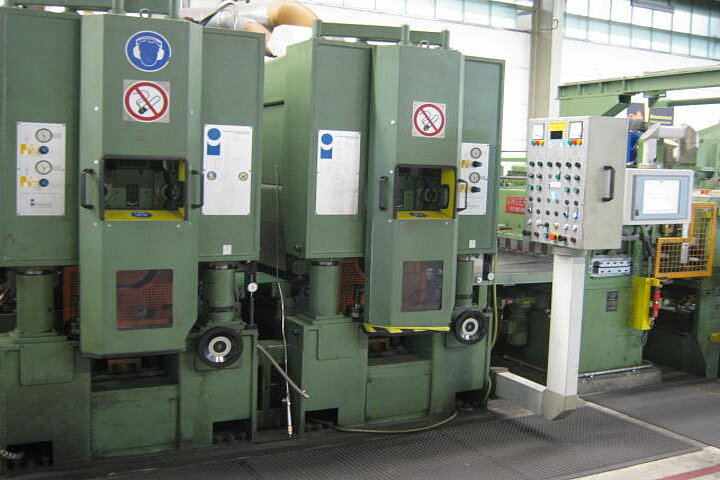

● Leveler (6-HI) manufacturer UNGERER               Model 1300 / 1,5 / 17

Year of construction (revised 1997)              No. – leveling rolls 17

No. – supports 18 (9 x above / 9 x below)    No. – back up rolls

Height adjustment – upper roll block motor driven

Tilting adjustment manually

Back up roll adjustment motor driven (gear motor)

● Conveyor table

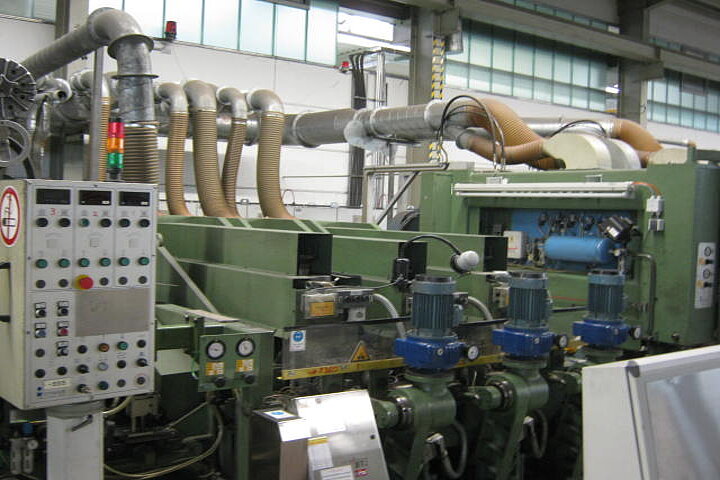

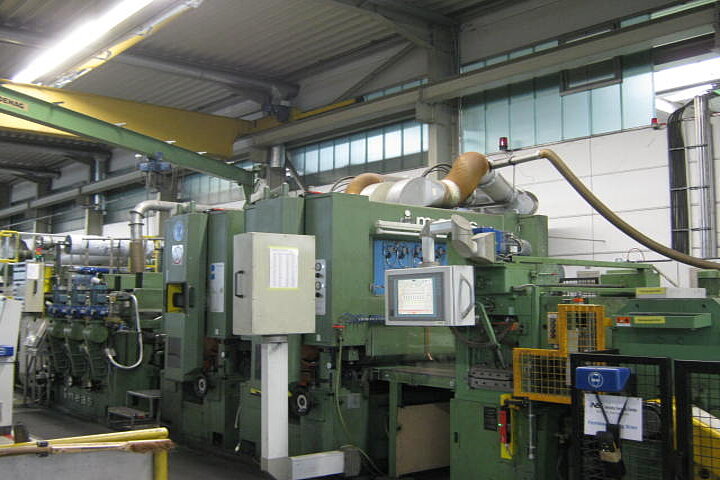

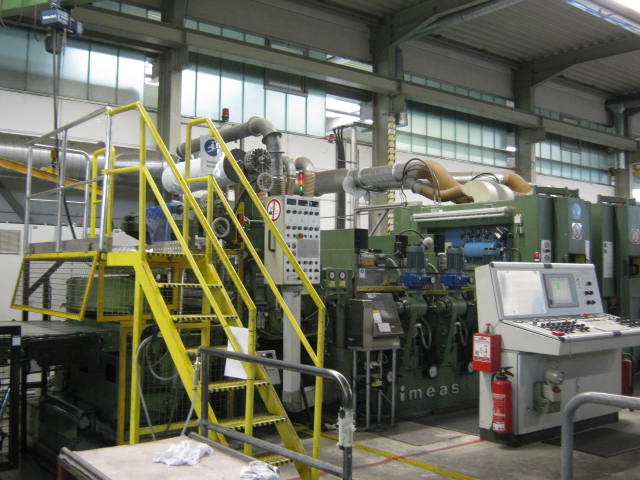

● Grinding-unit (2 stations)    with extraction device manufacturer IMEAS             Built: 1997

● Conveyor roller-table

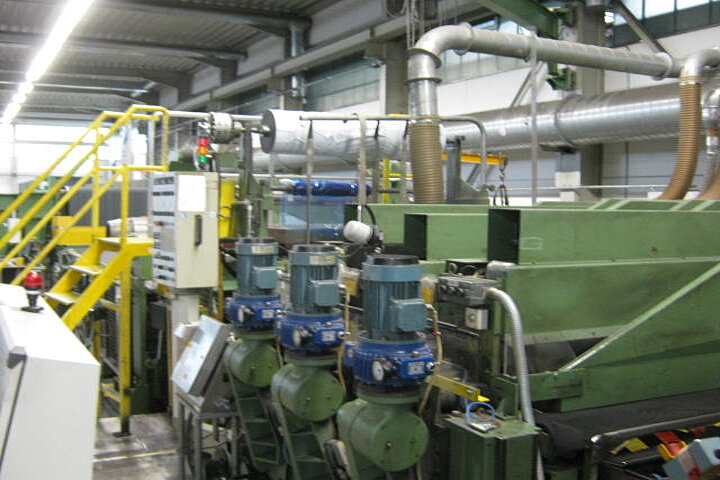

● Brushing-unit (3 stations)    with extraction device manufacturer IMEAS             Built: 1997

● Frame construction with measuring wheel

● Paper coiling – unit

● Cutting shear (cut-to-length)

● Conveyor stand with mounted conveyor table (belt conveyor)

(2 pc. – each 1 x infeed side / 1 x run out side)

and mounted opto-electronic device (on rack) manufacturer EMG

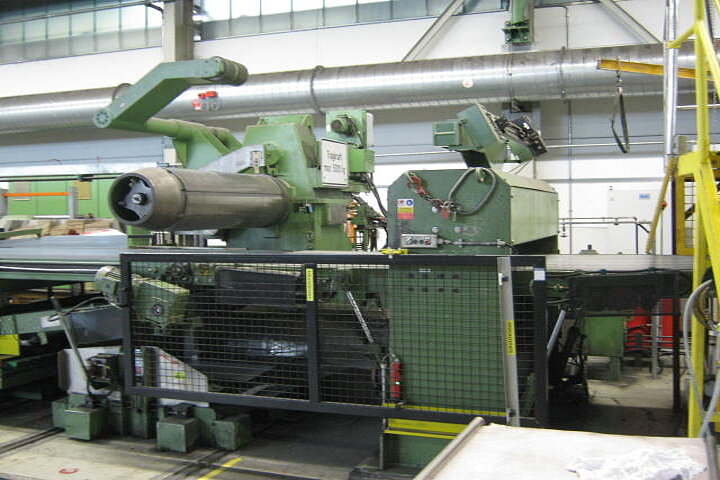

● Recoiler manufacturer UNGERER             Model: HU 1300 / 50 / 5

Built: (revamped 1997)          Capacity max. 5.0 to

Press roll / expanding process / shifting device hydraulically

● Paper coiling – unit

● Coil car (over floor – movable / prism-construction)

(actually placed out of the line and separately stored)

● Accelerator belt with mounted scrap switch                      No. – stacking places (movable) 2

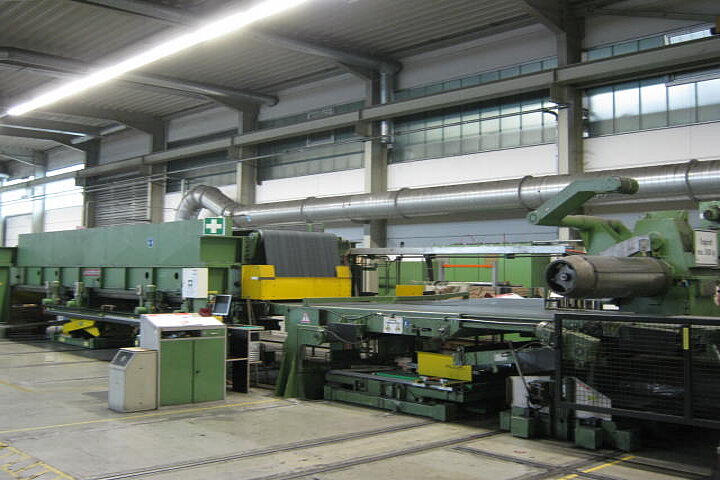

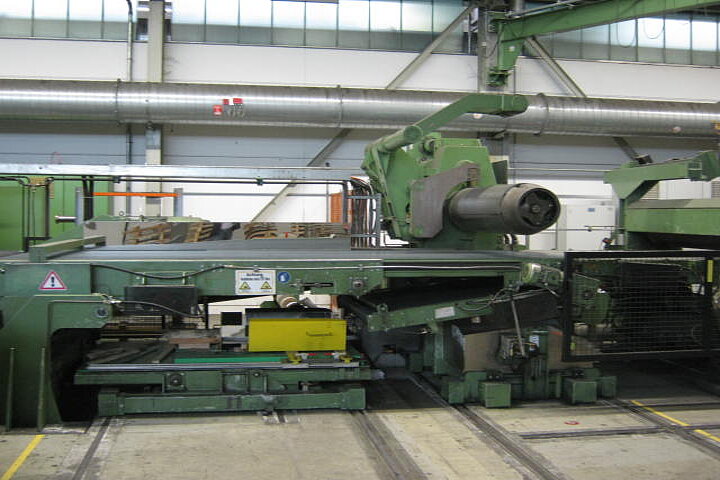

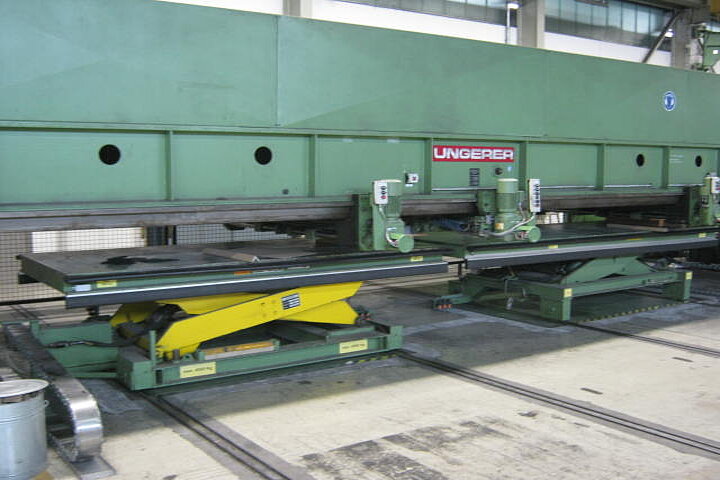

● Stacking-unit manufacturer UNGERER     Model: STPMS 6000 / 1300              Built: 1998

Construction vacuum stacking unit

Sheet length 500 – 6.000 mm           Sheet width 300 – 1.300 mm

No. – stacking places (movable) 2    Built: 1986      Stacking weight max. 4.0 to.

● electric equipment               ● hydraulic equipment           ● spare parts
