Qty. 11 Sets of second-hand rebar stands including accessories

Mfc.: Morgardshammar, Built: 2017, In operation 3 years only!

1) Qty. 3 Bar stands (Roughing), including 6 rolls and spare parts

Type: P365, Distance between axes: 248 – 420 mm

Cylinder drum lengths: 480, 600 mm

Trunnion diameter: 165 mm, Axes: 210 mm

Bending stress on a trunnion: 200 N/mm² for 1230 kN trunnion load

Spare Parts:

Qty. 5 Shaft crest rlmt double button

Qty. 9 Cylinder coupling ring

Qty. 14 Labyrinth ring cylinder

Qty. 4 Cover rlmt stop trans

Qty. 8 Rlmt flange stop

Different kinds of spare parts – over 150 pieces

2) Qty. 8 Bar stands (Finishing) including 16 rolls and spare parts

Type: P624, Distance between axes: 360 – 600 mm

Cylinder drum lengths: 460, 600 & 820 mm

Trunnion diameter: 230 mm, Axes: 130 mm

Bending stress on a trunnion: 200 N/mm² for 640 kN trunnion load

Spare Parts

Qty. 4 Reducer on vertical cage

Qty. 3 Bearing cover side

Different kinds of spare parts – over 120 pieces

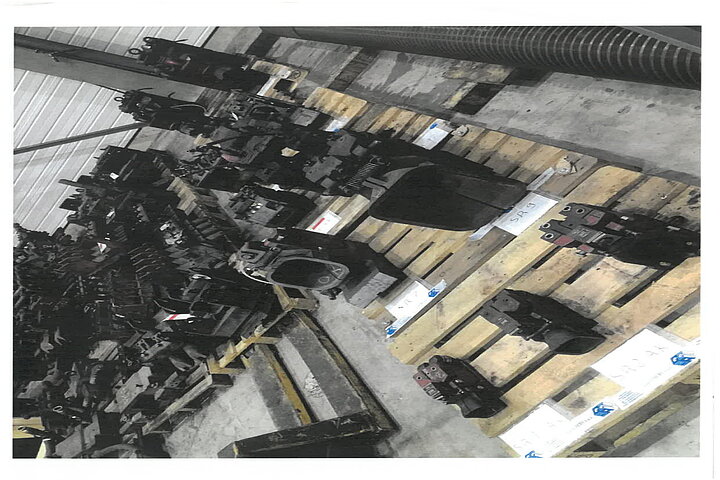

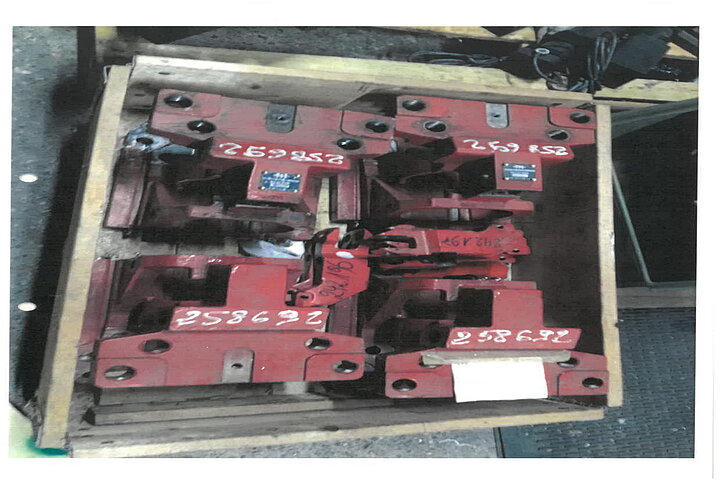

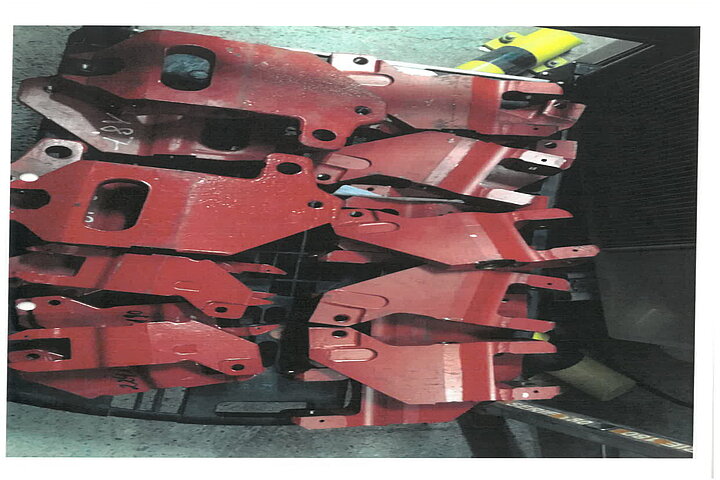

Diverse Guiding boxes – approx. 170 pieces, Types: RTC, DRW, SR, PRD, DR MSL

Diverse Spare Parts: Rollers, Static guides, Guides in cast

Mill Stands for production of re-bars from 5.5 up to 63 mm
